Fire Isolated Chemical Cabinet

Description

JiWas Fire Isolated Chemical Cabinets are made for storage of flammable and toxic chemicals.
They have been tested by the technical research institute of Sweden with regards to ventilation and the G2006B with an isolated back has been tested according to the method 2369 of the technical research institute of Sweden with regards to external fire and has passed the requirement for class one (the same external test that is done to cabinets with glass doors for storage of flammable products in stores)

JiWas Fire Isolated Chemical Cabinets have movable shelves with folded edges and sealed corners to prevent runoff in the event of spillage. The fire isolated cabinets can also be be fitted with a collection trough for storage of bigger containers. The cabinets are fitted with a ventilation duct with suction points that ventilates the space between the shelves. Exhaust attatchment on top of the cabinet (Ø 100 mm)
When handling larger amounts of flammable products, see our fire-rated chemical cabinets F30, F60 or F90.

Trials done by the Technical Research Institute of Sweden:
– The cabinet is tested with regards to ventilation and that leagage of fumes is not possible. T.R.I.S report no 96E21227a.
– Model G2006 with an isolated back is tested with regards to external fire according to T.R.I.S method 2369. No internal fire-trial has been done as the cabinet is not equipped with automatic door-closers. T.R.I.S. report 98B1,0718 rev.

– Stability and solidity according to SS-EN 14073-3
– Safety standard according to SS-EN 14073-2
– Durability on moving parts according to SS-EN 140747777
– Determination of strength and durability according to ISO 7170:2005
– Quality according to SS83 90 30 utgåva 3
– Compliant with Möbelfaktas extra high demand on surface durability

ITEM NO: G2006B
EXT. MEASUREMENTS: H2095 x W1000 x D600 mm.
INT. MEASUREMENTS: H1930 x W925 x D560 mm.
NO OF SHELVES: 5
WEIGHT: 145 kg

ITEM NO: G2004B
EXT. MEASUREMENTS: H2095 x W1000 x D450 mm.
INT. MEASUREMENTS: H1930 x W925 x D410 mm.
NO OF SHELVES: 5
WEIGHT: 125 kg

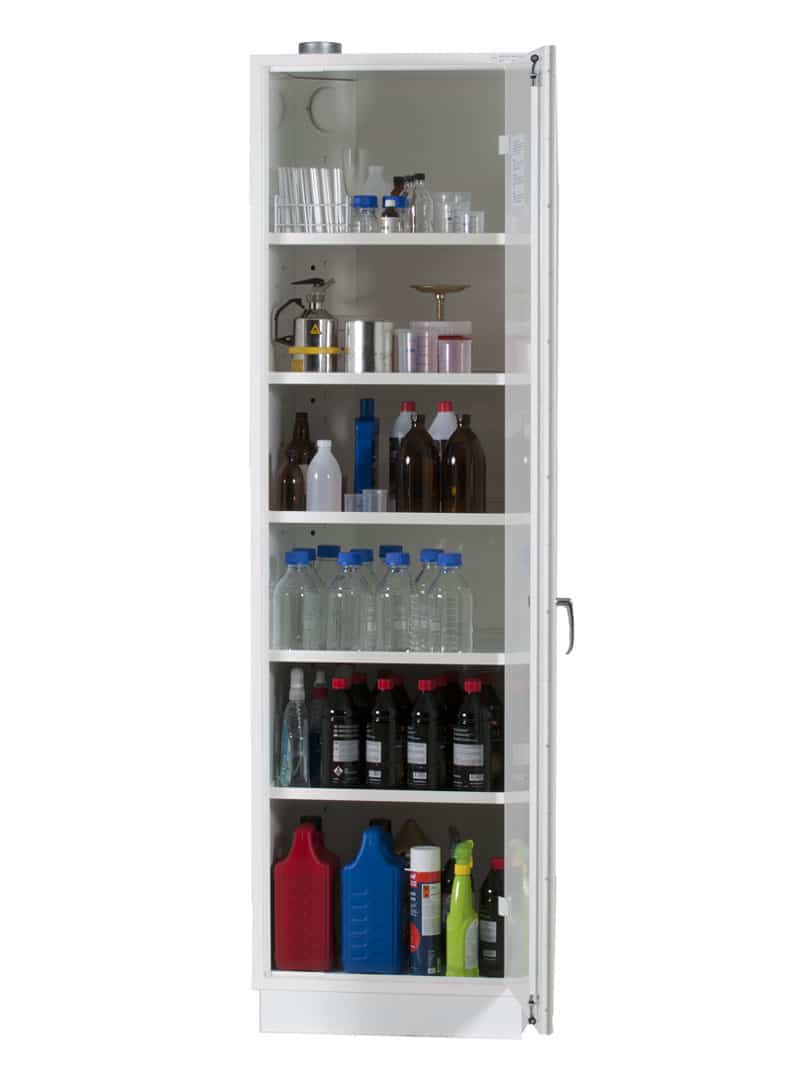

ITEM NO: G200
EXT. MEASUREMENTS: H2095 x W600 x D600 mm.
INT. MEASUREMENTS: H1930x W525 x D560 mm.
NO OF SHELVES: 5
WEIGHT: 125 kg

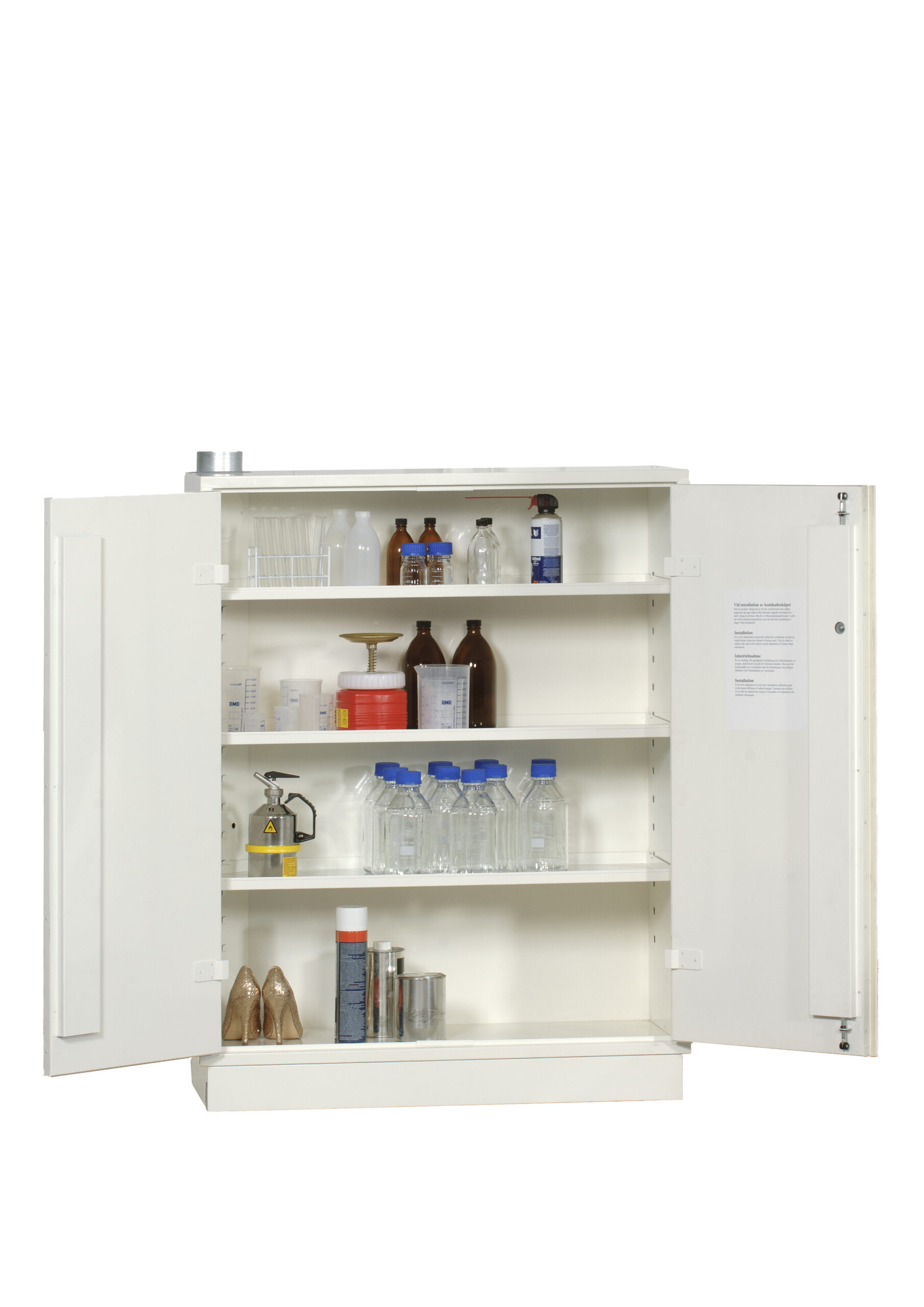

ITEM NO: G1204E
EXT. MEASUREMENTS: H1295 x W1000 x D450 mm.
INT. MEASUREMENTS: H1130 x W925 x D410 mm.
NO OF SHELVES: 3
WEIGHT: 85 kg

ITEM NO: G806G
EXT. MEASUREMENTS: H895 x W1000 x D600 mm.
INT. MEASUREMENTS: H730 x W925 x D560 mm.
NO OF SHELVES: 1
WEIGHT: 75 kg

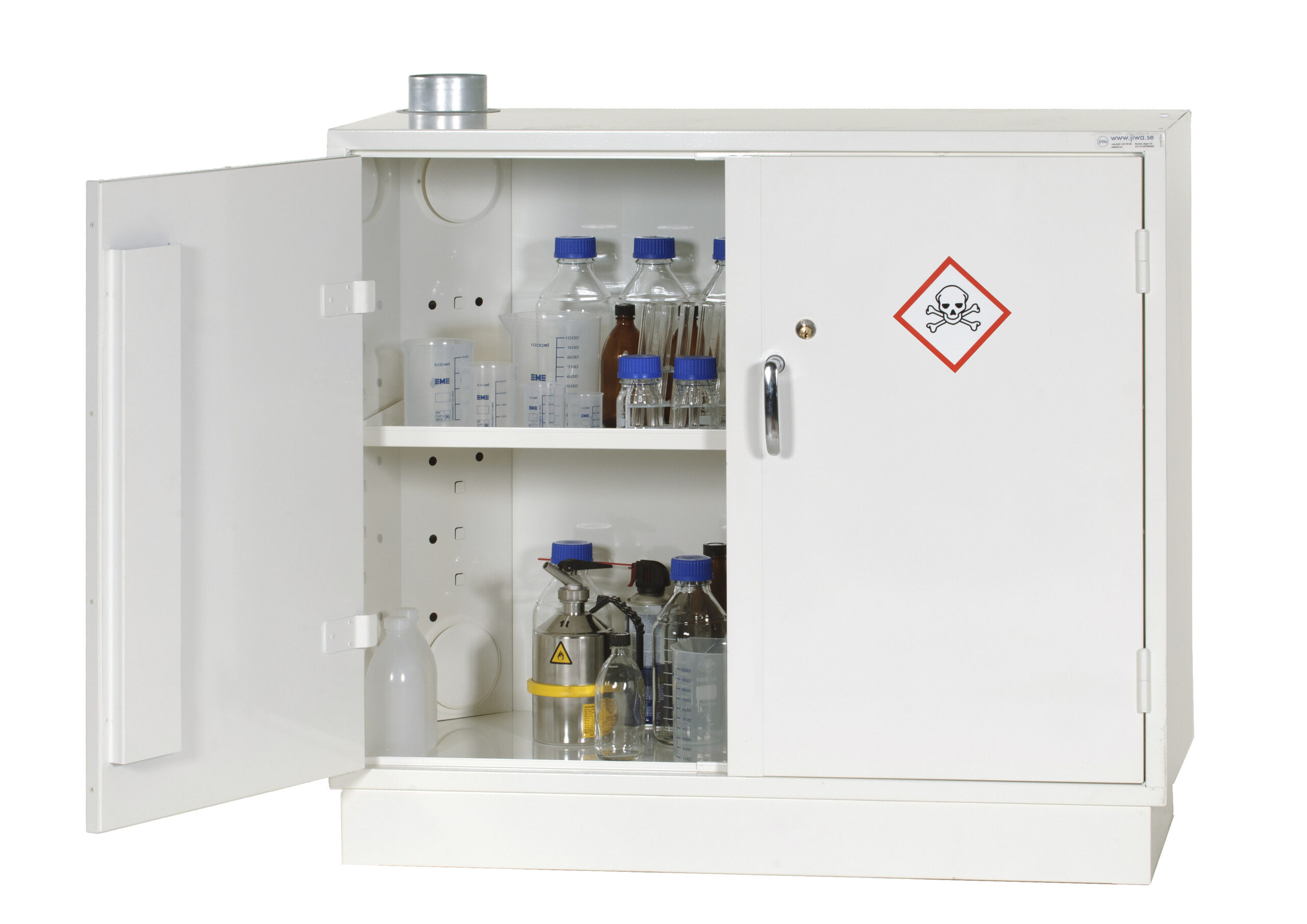

ITEM NO: G804G
EXT. MEASUREMENTS: H895 x W1000 x D450 mm.
INT. MEASUREMENTS: H730 x W925 x D410 mm.
NO OF SHELVES: 1
WEIGHT: 60 kg

ITEM NO: G803G
EXT. MEASUREMENTS: H895 x W1000 x D300 mm.
INT. MEASUREMENTS: H730 x W925 x D275 mm.
NO OF SHELVES: 1
WEIGHT: 50 kg

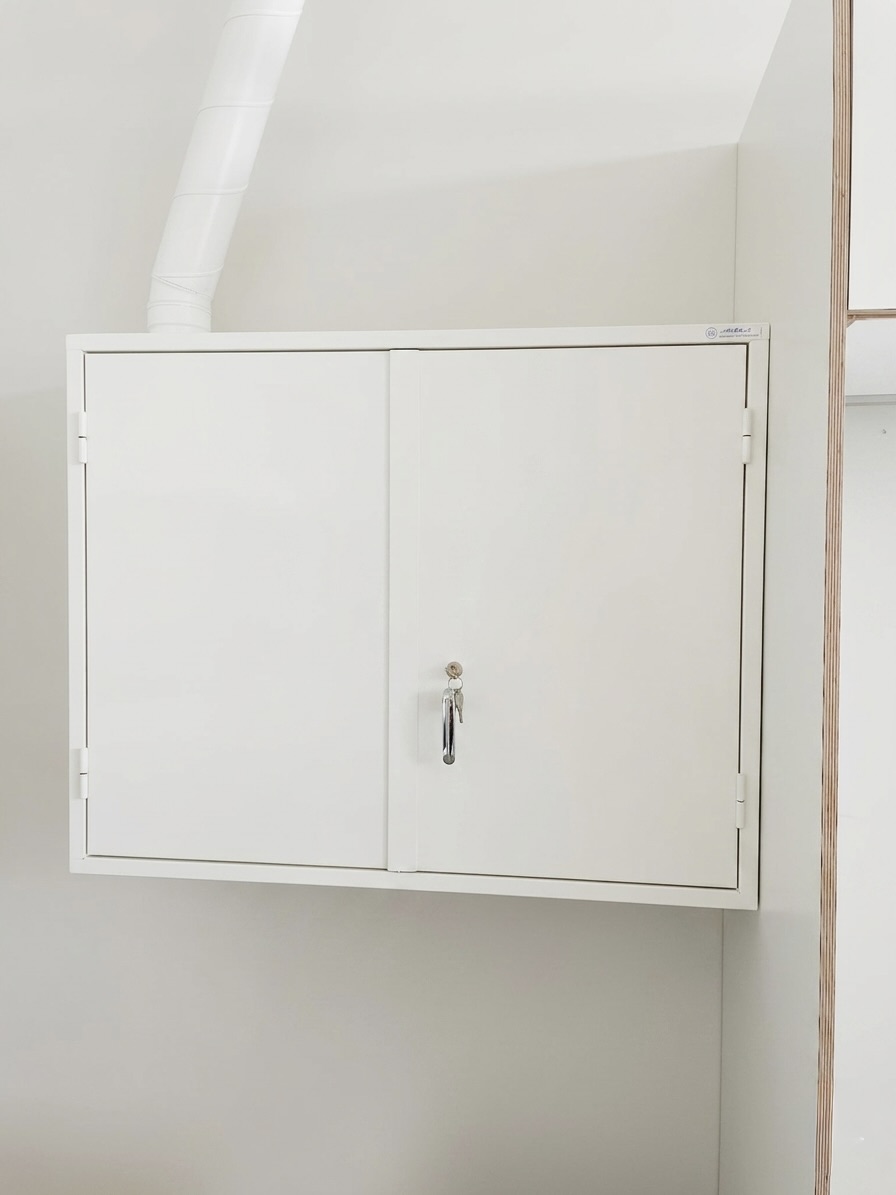

ITEM NO: G803GLL
EXT. MEASUREMENTS: H800 x W1000 x D300 mm.
INT. MEASUREMENTS: H730 x W925 x D275 mm.
NO OF SHELVES: 1
WEIGHT: 50 kg
MISC: Not including base and low locking for hanging from a wall or mounting atop another cabinet.

FITTINGS

ITEM NO: KL
DESCRIPTION: Electronic code door-handle

ITEM NO: G06
Trough-shelf for depth 600 mm.

ITEM NO: G04
Trough-shelf for depth 450 mm.

ITEM NO: G03
Trough-shelf for depth 300 mm.

ART. NR: G066
Trough-shelf for the G200.

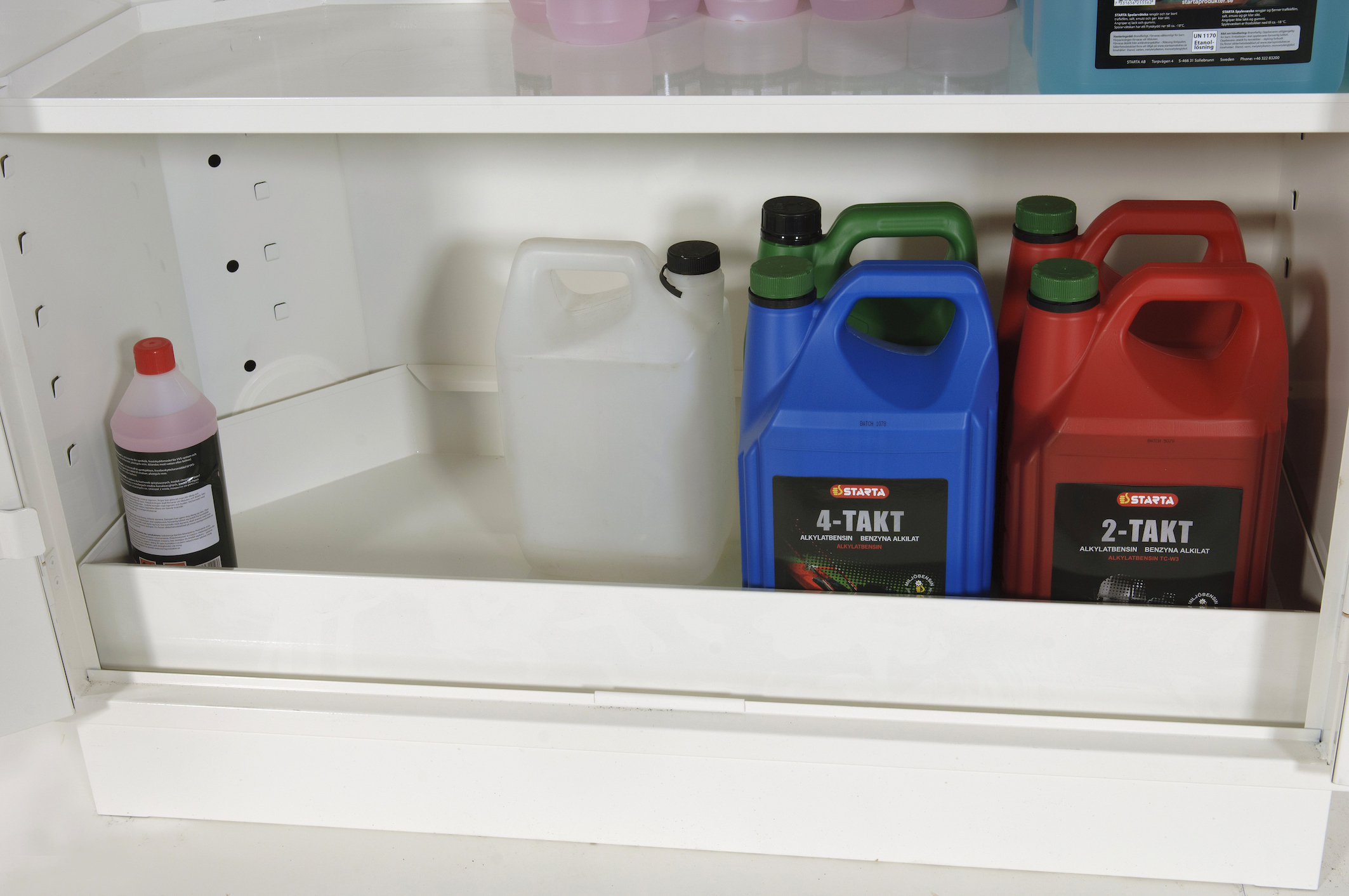

ITEM NO: GL06
Collection trough for depth 600 mm.
COLLECTION VOLUME: 44 litres

ITEM NO: GL04
Collection trough for depth 450 mm.
COLLECTION VOLUME: 31 litres

ITEM NO: GL03
Collection trough for depth 300 mm.
COLLECTION VOLUME: 20 litres

ITEM NO: GL066
Collection trough for the G200.
COLLECTION VOLUME: 28 litres
