Fire-insulated battery cabinets

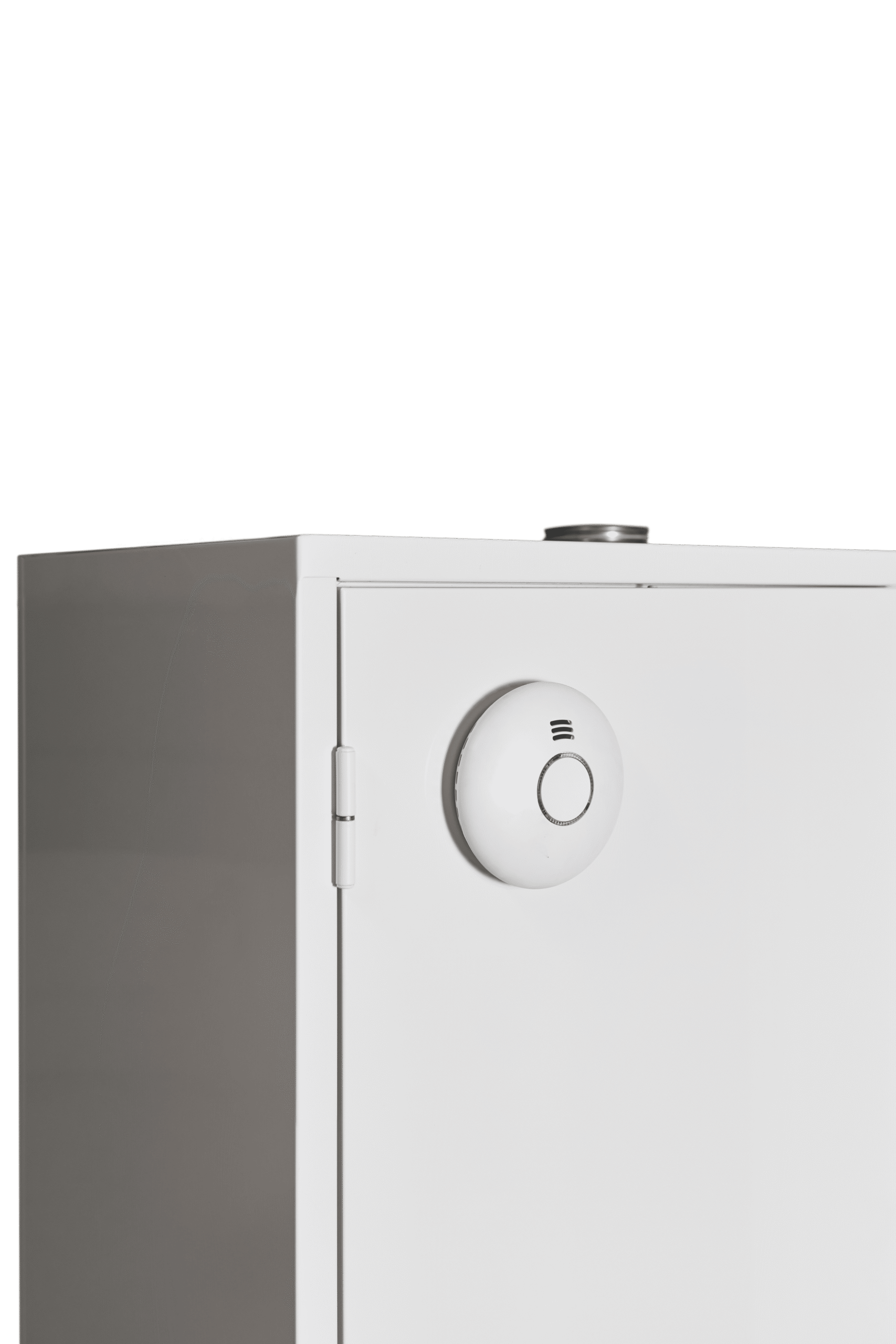

JiWa battery cabinets are fire-insulated and fire-tested for external fire according to SP method 2369. The cabinets are supplied with two smoke detectors that are activated by smoke, a rapid temperature increase, and when the internal cabinet temperature exceeds 54°C. The external alarm is supplied loose inside the cabinet for optional placement, while the internal alarm is mounted on the inside ceiling of the cabinet. Pre-installed electrical wiring and a power strip are included. Perforated shelf/shelves are included; the shelves support 50 kg of evenly distributed load. The cabinets are ventilated through the roof fitted with a fire damper. Ventilation must always be connected.

Tests
– Fire-tested for external fire according to SP method 2369.
– Tested by RISE in accordance with IEC/EN 60335-1:2023+A11:2023 for safe charging and use in environments where uninstructed persons handle the equipment.
– The cabinets are tested with regard to safety, strength, durability, and stability in accordance with EN 16121, EN 14073-2, and EN 14074.
– Strength of moving parts according to SS-EN 14074.
– Determination of strength and durability ISO 7170:2005.
– Workmanship quality according to SS 83 90 30, edition 3.
– Meets Möbelfakta’s extra high requirements for surface durability.

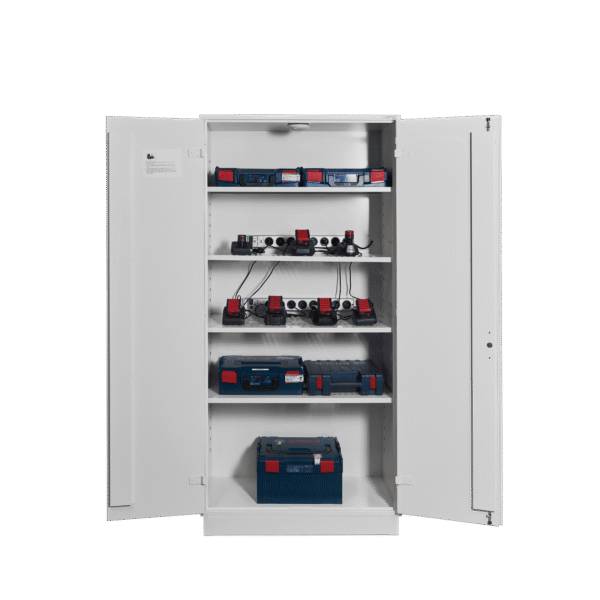

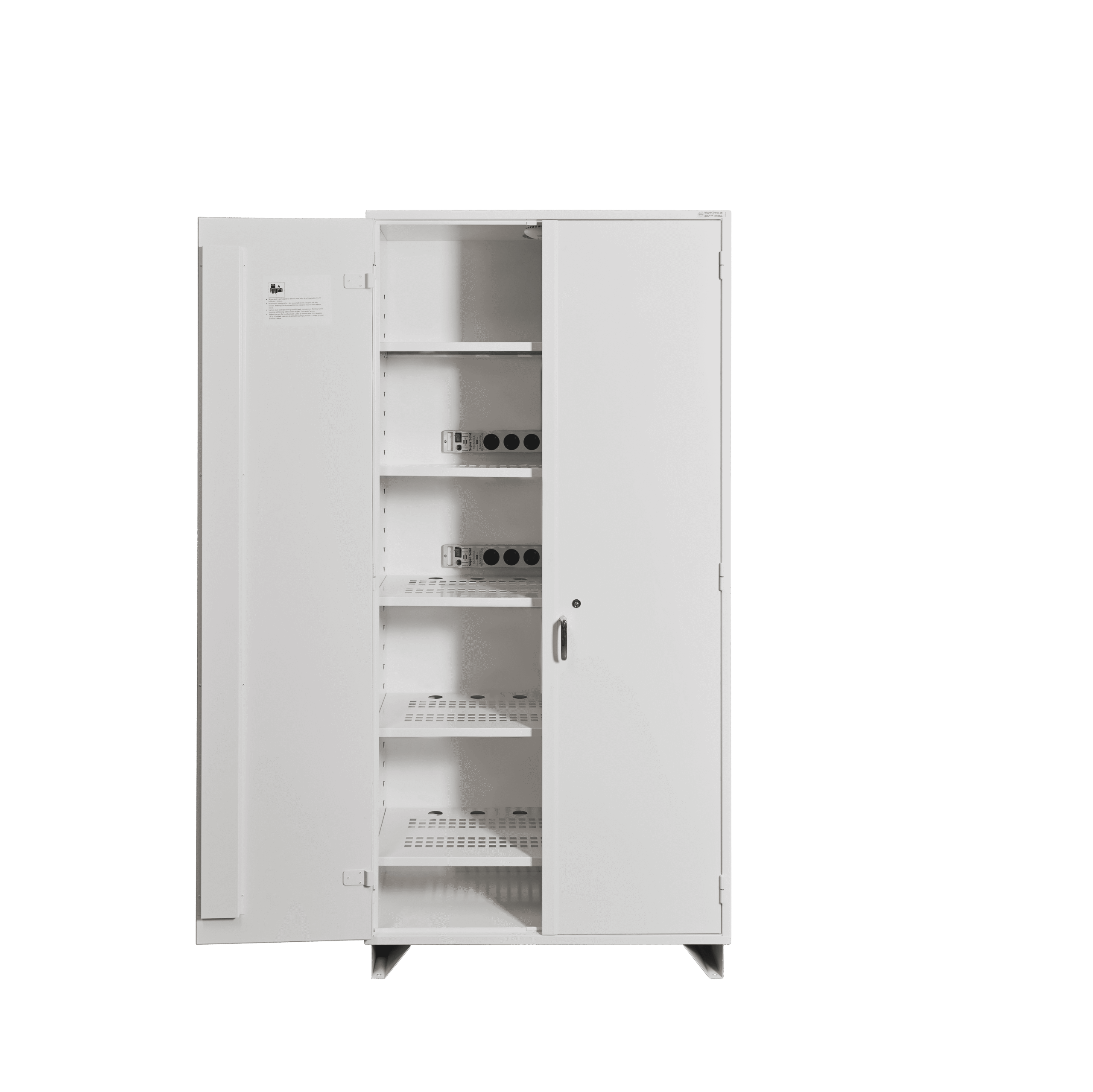

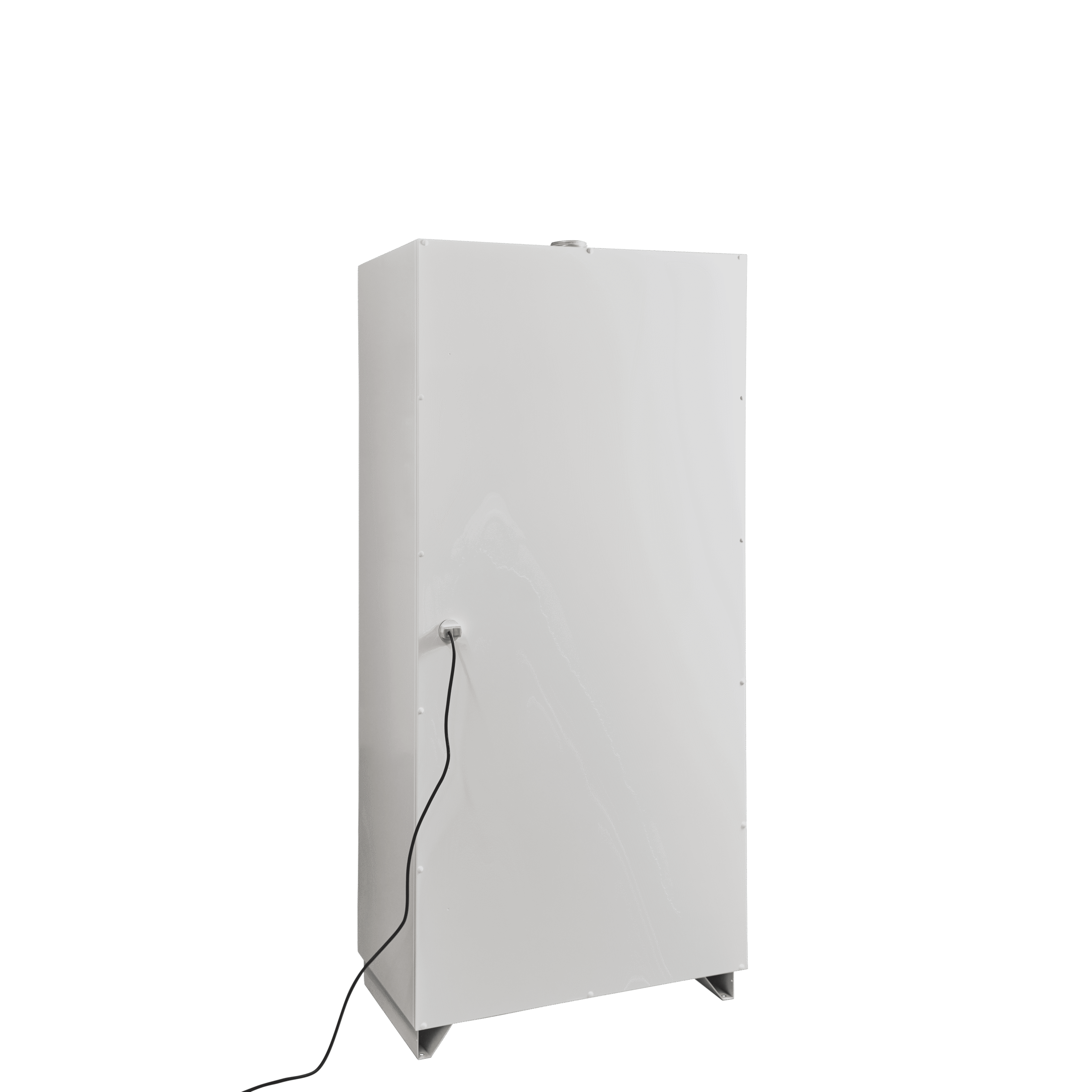

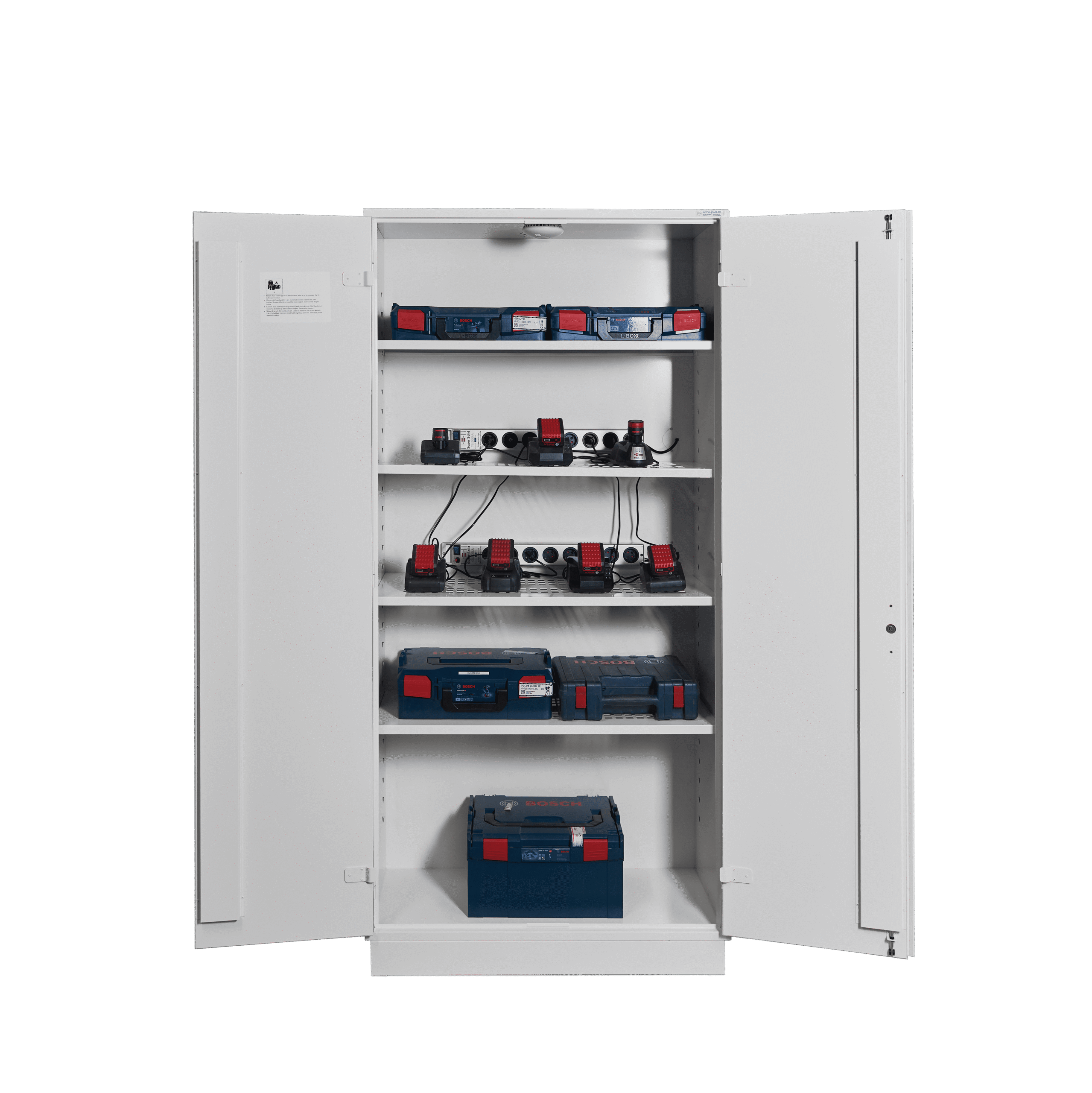

ITEM NO: BAT2006
EXT. DIM: H2095 × W1000 × D620 mm
INT. DIM: H1930 × W925 × D560 mm
NUMBER OF SHELVES: 5

WEIGHT: 145 kg

Connection spigot H100 mm is added on the top.

ITEM NO: BAT2004
EXT. DIM: H2095 × W1000 × D470 mm
INT. DIM: H1930 × W925 × D410 mm
NUMBER OF SHELVES: 5

WEIGHT: 125 kg

Connection spigot H100 mm is added on the top.

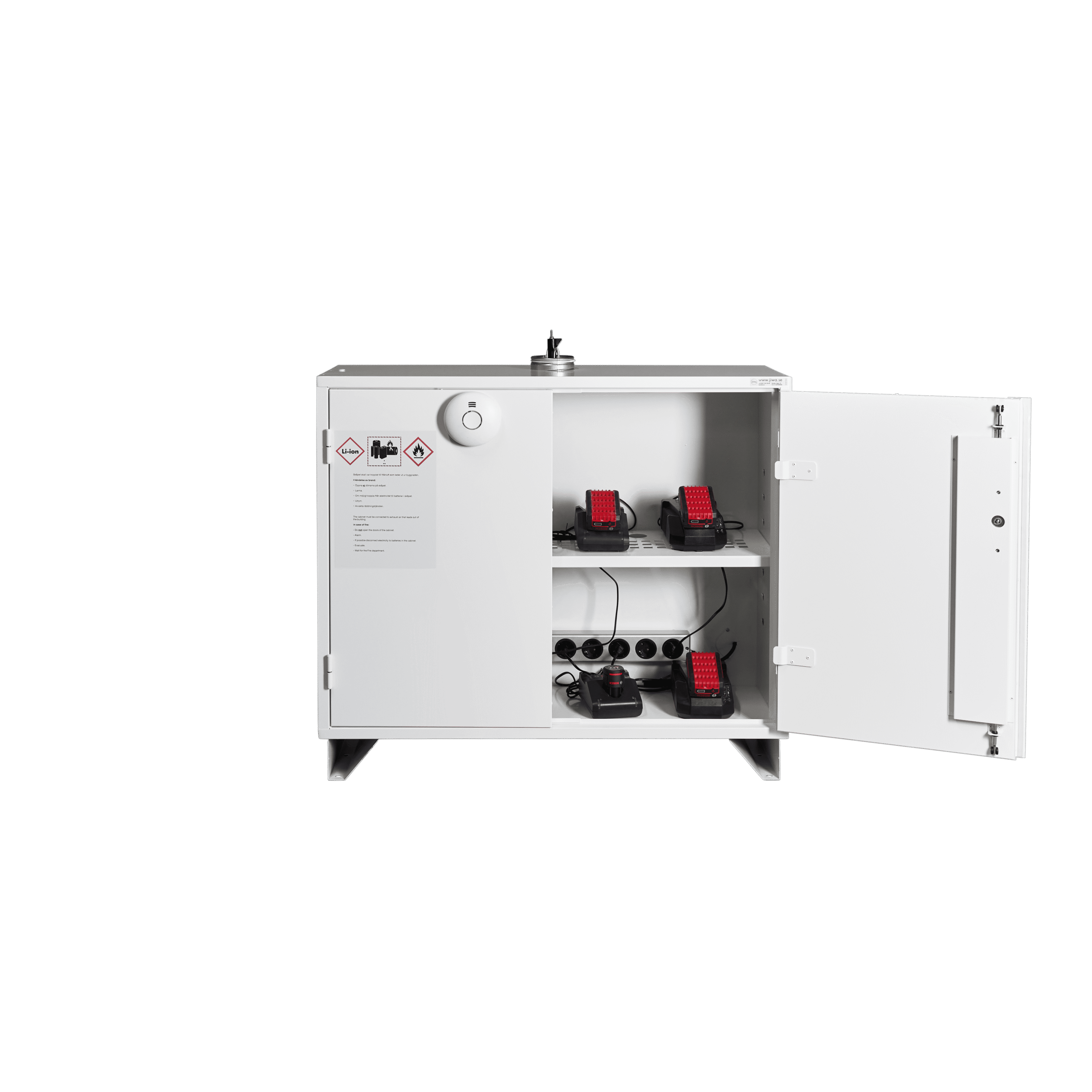

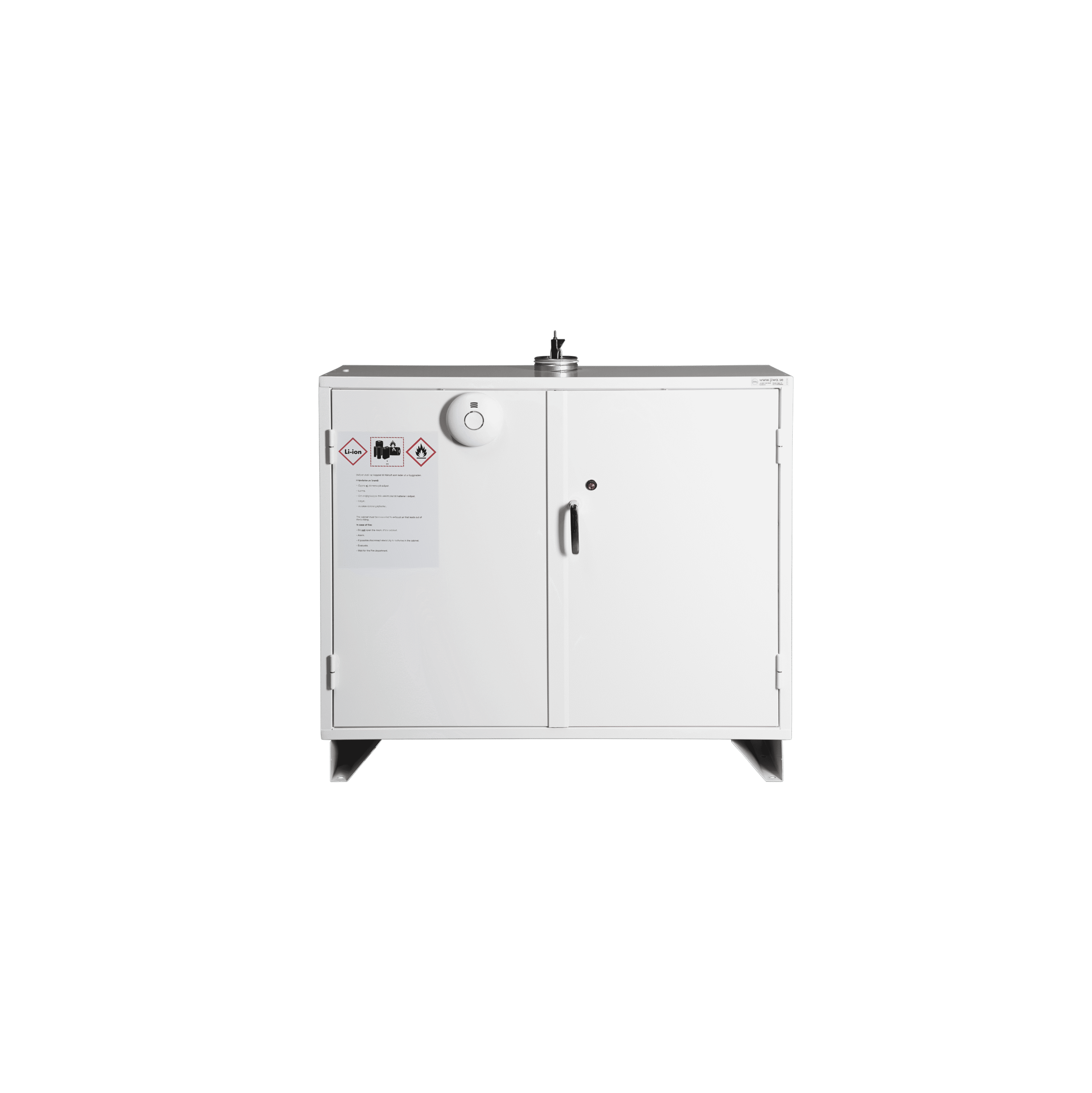

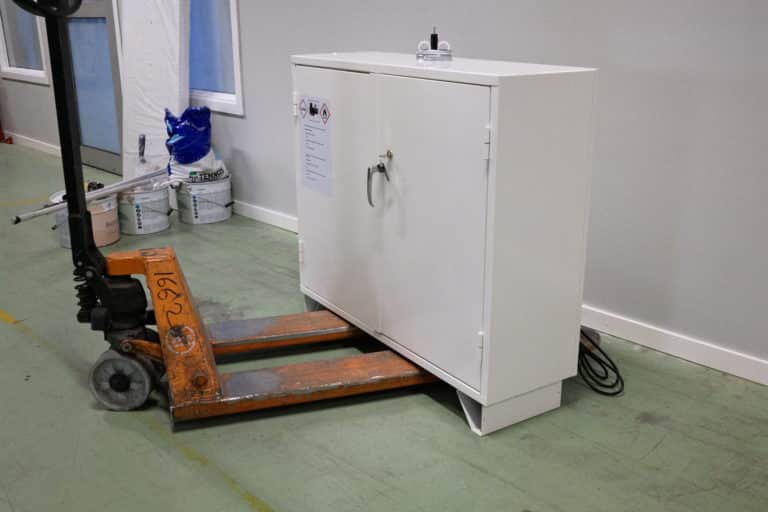

ITEM NO: BAT803
EXT. DIM: H895 × W1000 × D320 mm
INT. DIM: H730 × W925 × D275 mm
NUMBER OF SHELVES: 1

WEIGHT: 50 kg

Connection spigot H100 mm is added on the top.

Equipment

ITEM NO: PERF620
Perforated shelf for cabinet, depth: 620 mm

ITEM NO: PERF470
Perforated shelf for cabinet, depth: 470 mm

ITEM NO: PERF320
Perforated shelf for cabinet, depth: 320 mm

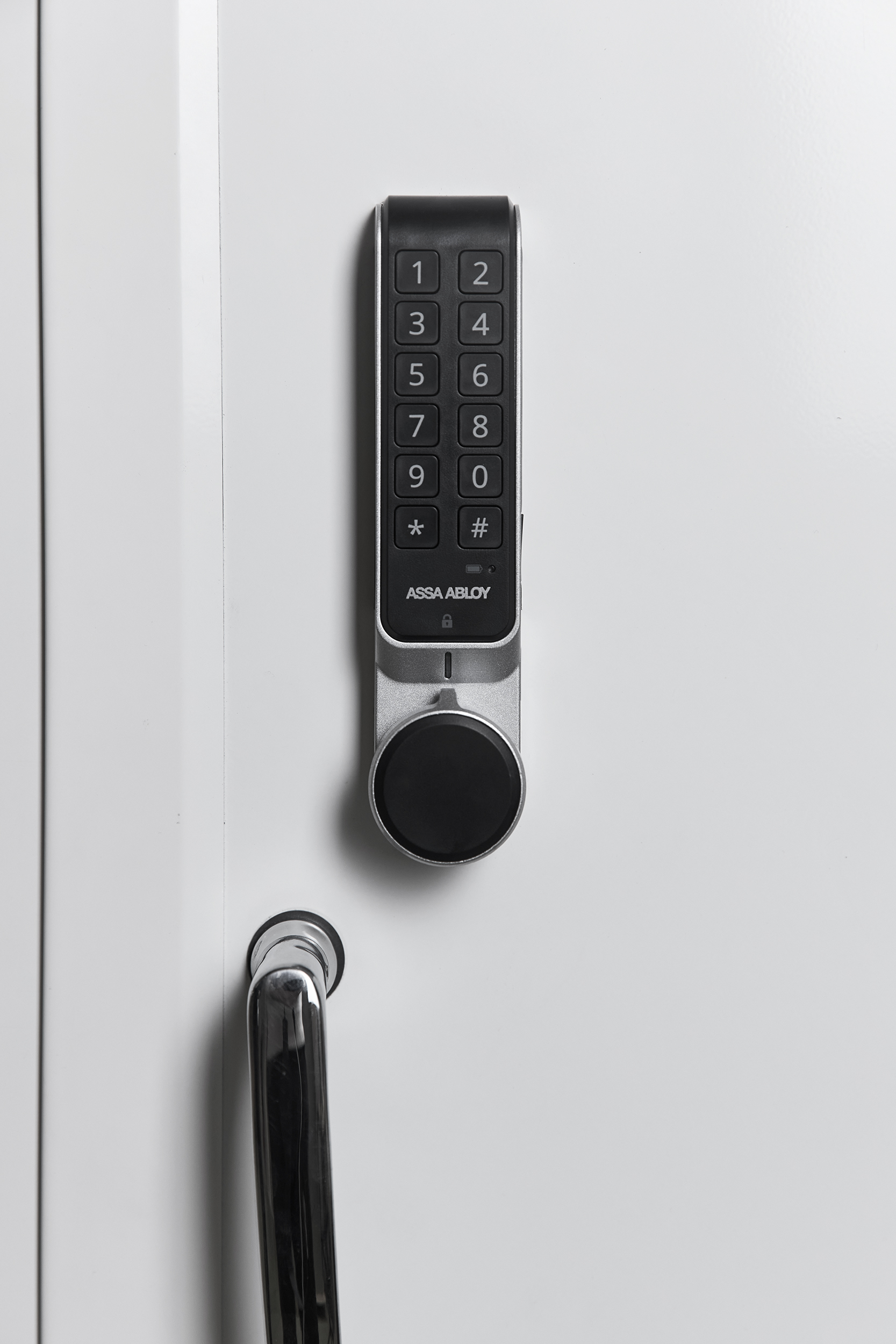

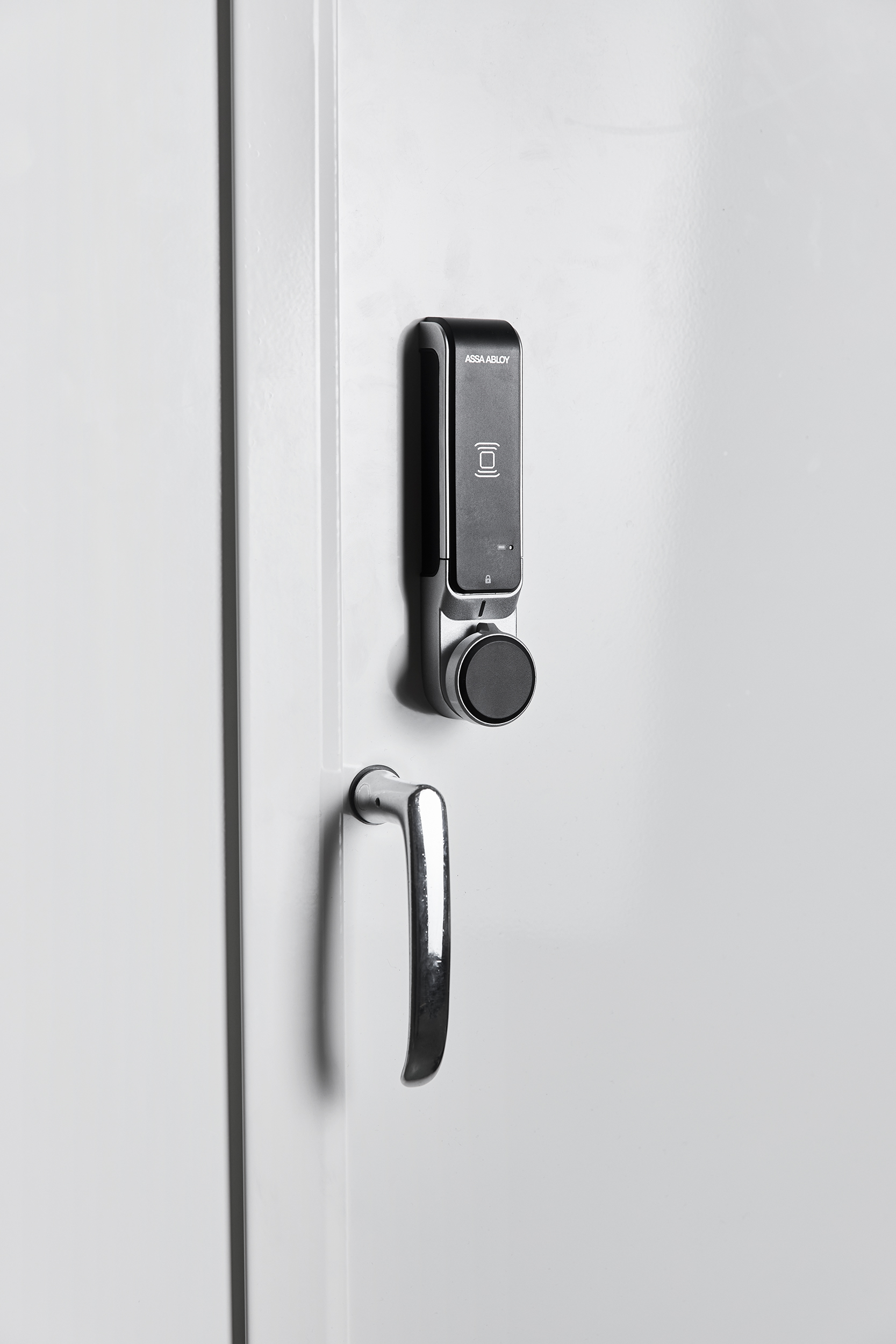

ITEM NO: KL
Electronic lock

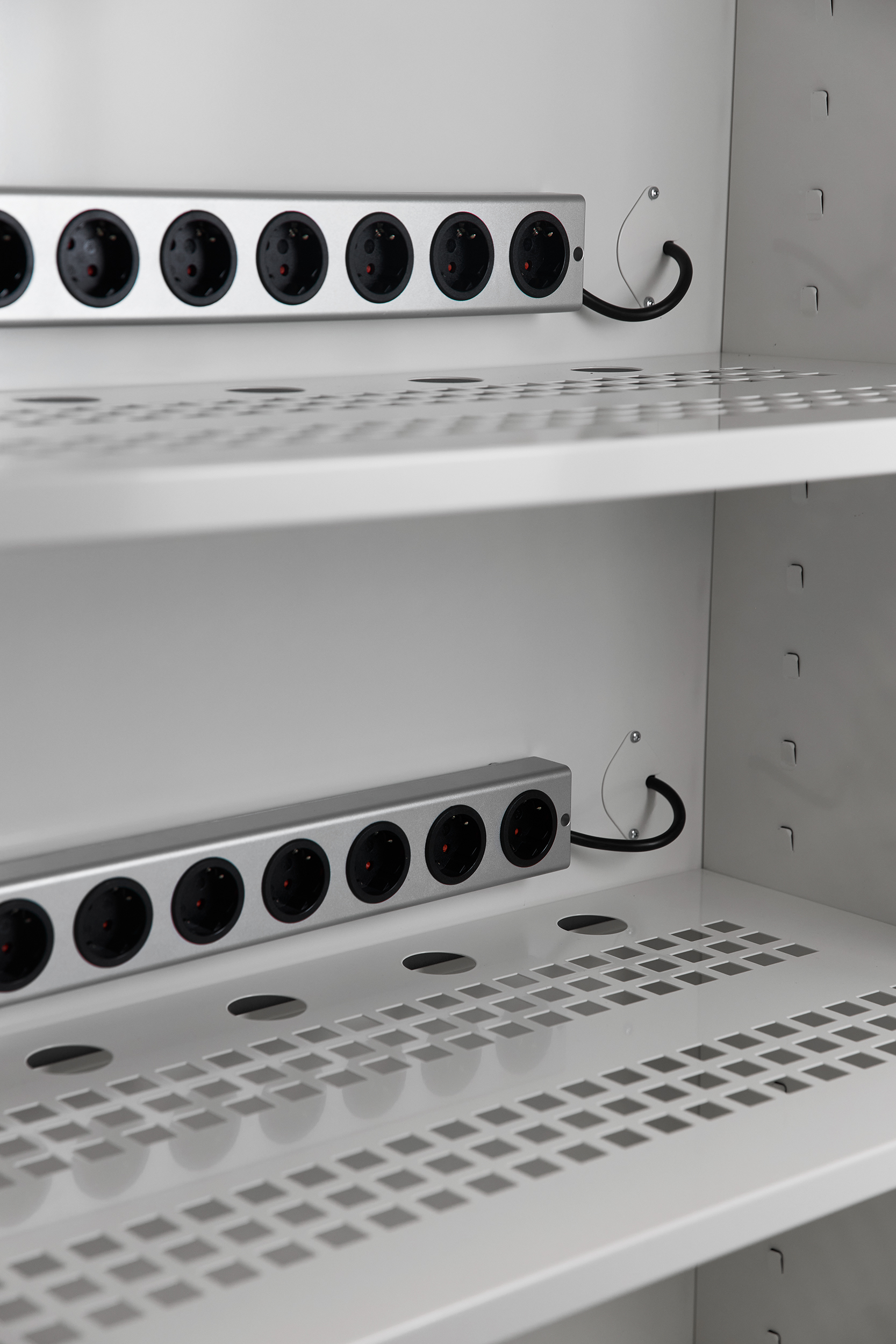

ITEM NO: GU8
Additional 8-way power strip, mounted and ready above the shelf.

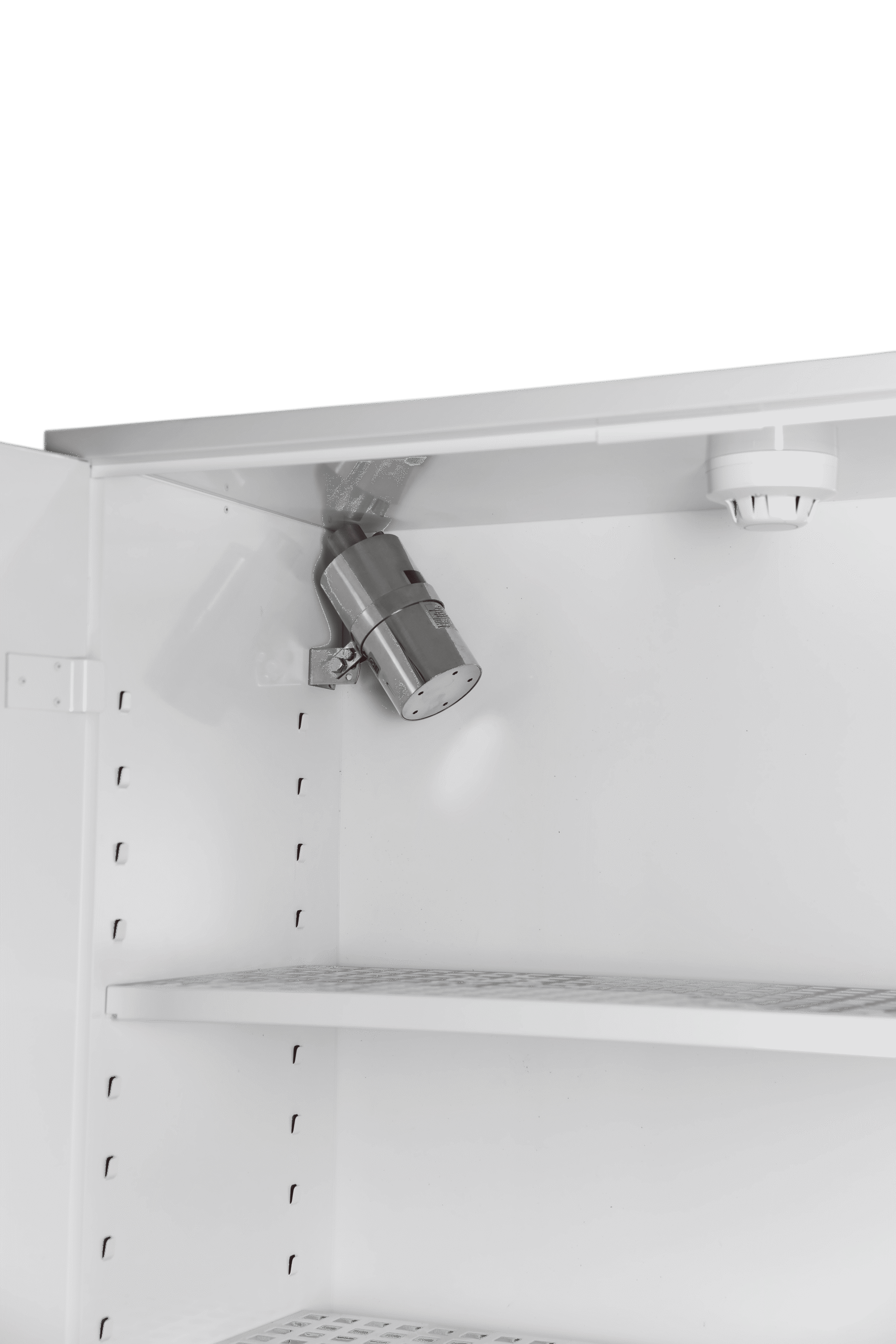

ITEM NO: FP-200S
FirePro fire suppression unit
