JiWas F30 Separating Chemical Cabinets are fire tested for 30 minutes in accordance with EN-standard 14470-1. The cabinets are fitted with self-closing dorrs that can be set in an open position but will close automatically when a temperature rise of 50°C occurs in the room. Doors are locked separately.
Exhaust attatchment (Ø100 mm).
The cabinets are fitted with movable shelves and base-trough.
Trials
– Fire tested for30 minutes in accordance with EN-standard 14470-1
– Approved according to FM-standard 6050

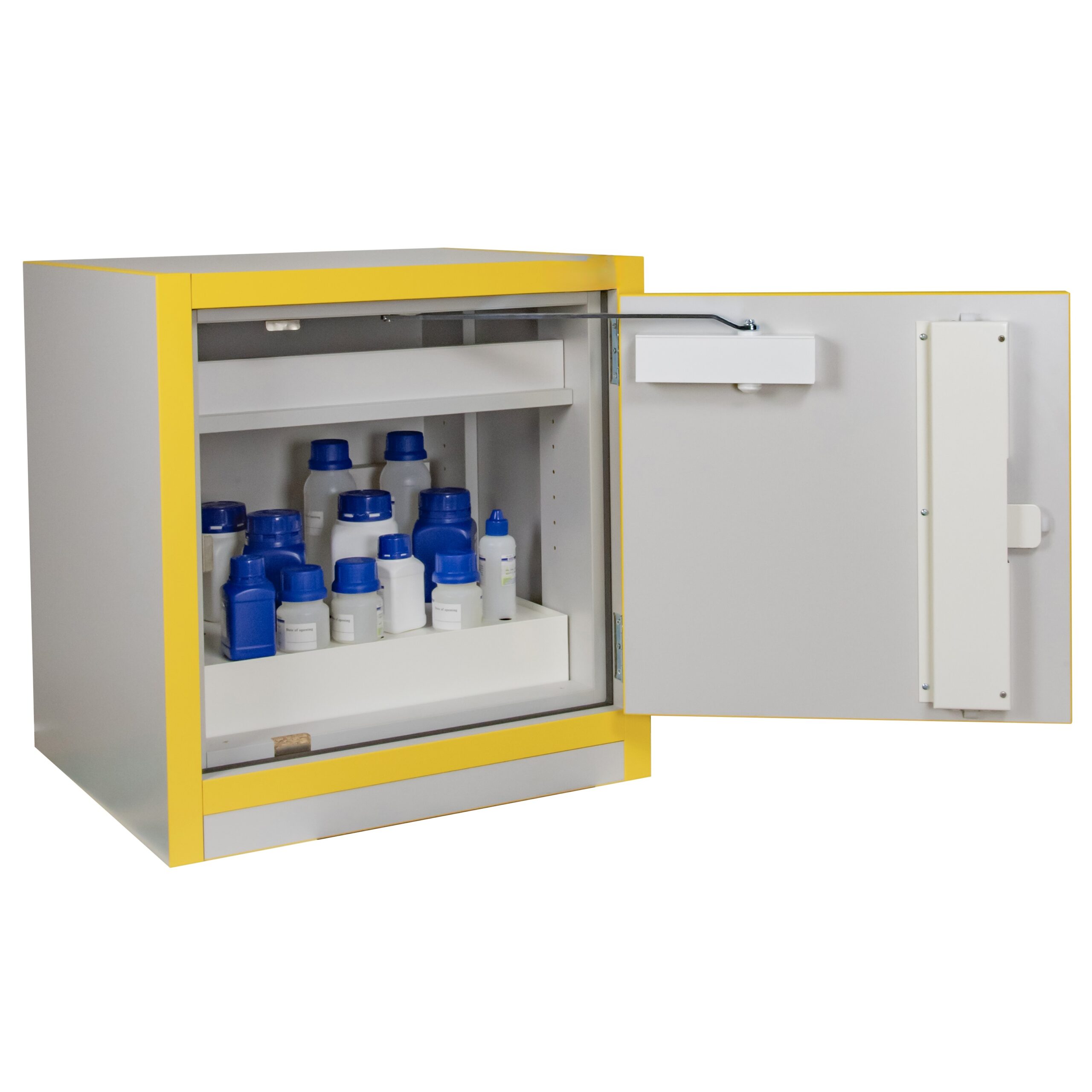

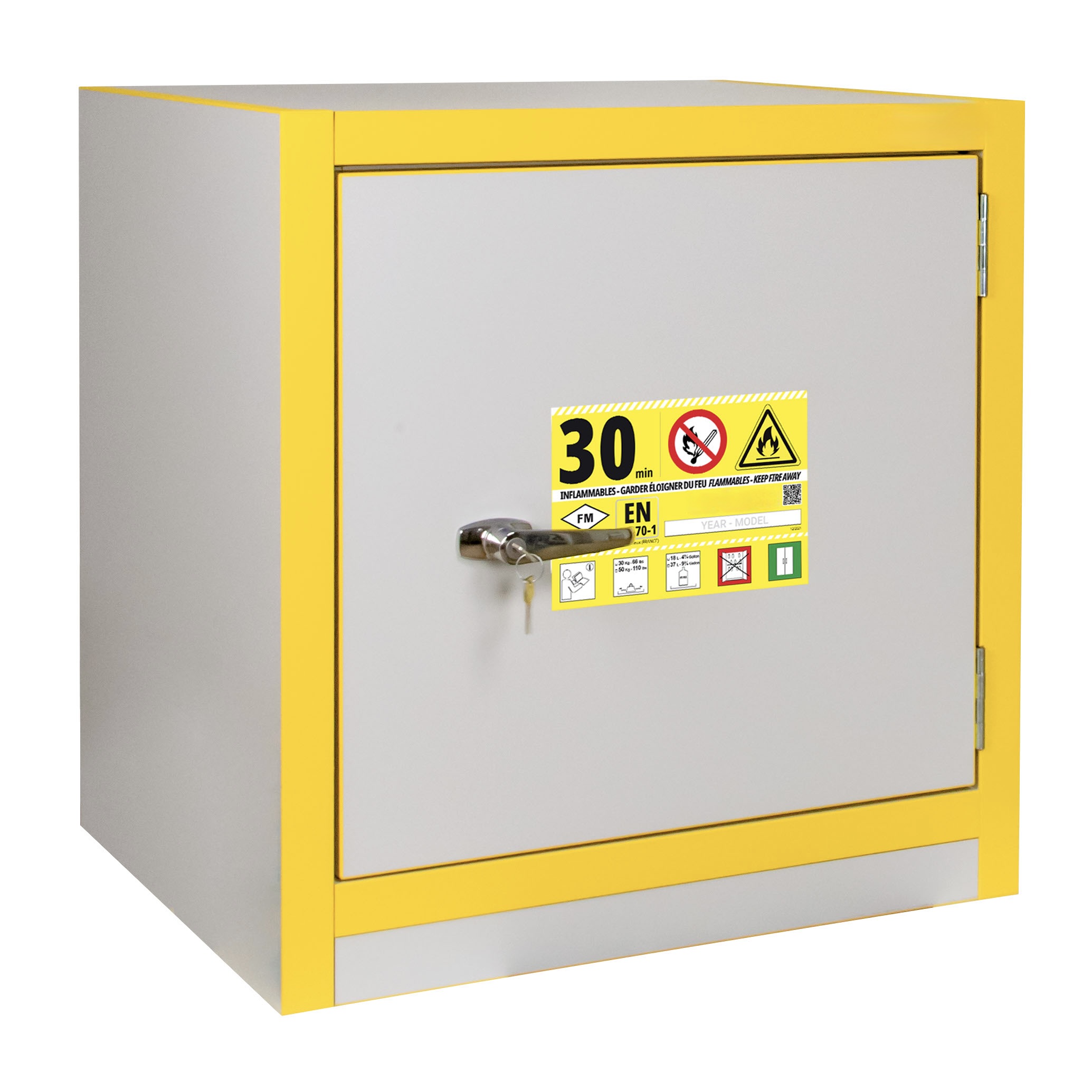

ITEM NO: F30-KEM1
EXT. MEASUREMENTS: H635 x W605 x D550 mm.
INT. MEASUREMENTS: H366 x W491 x D419 mm.
FITTINGS: One floor-trough
WEIGHT: 64 kg
MISC: Exhaust attatchment (Ø100 mm) situated in back of cabinet

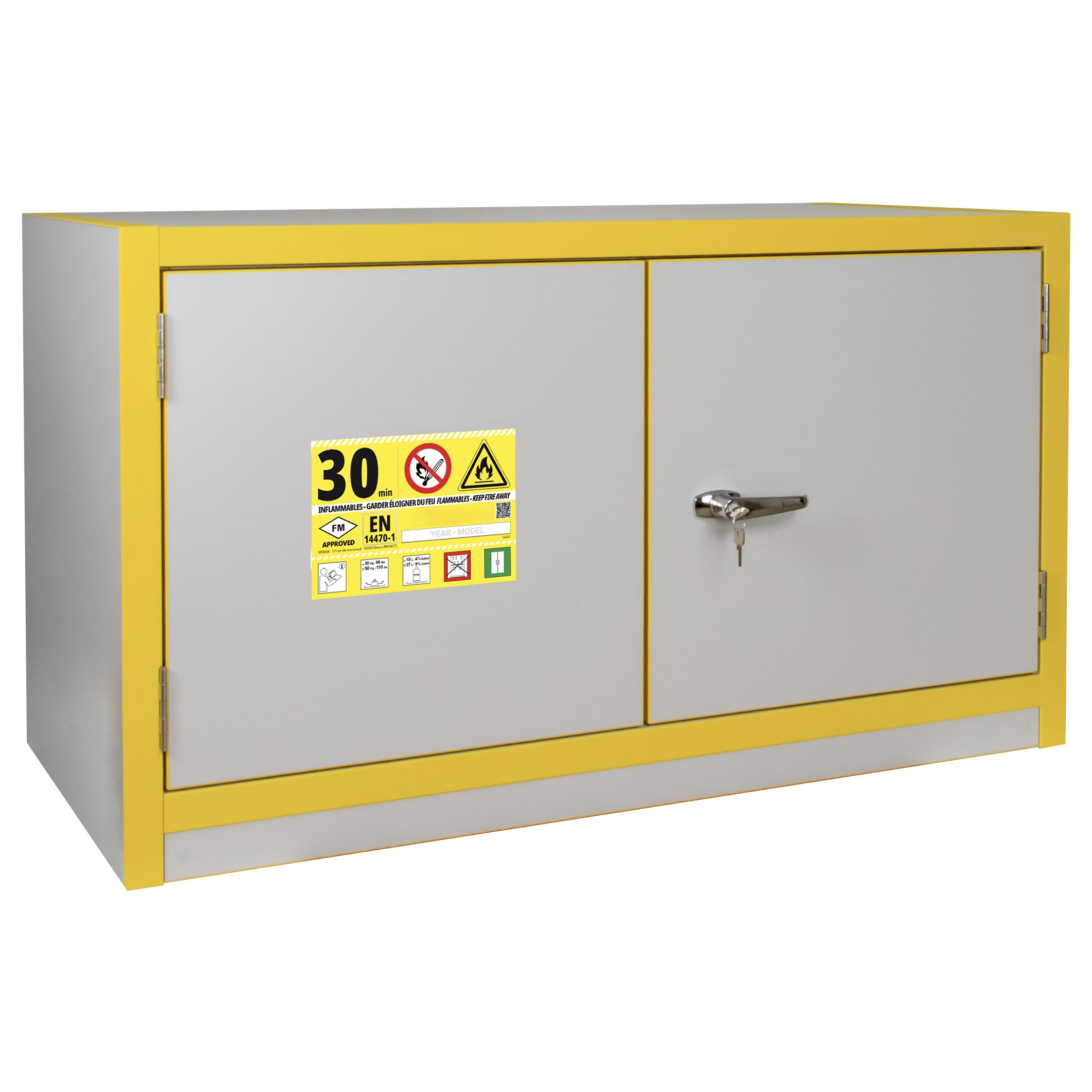

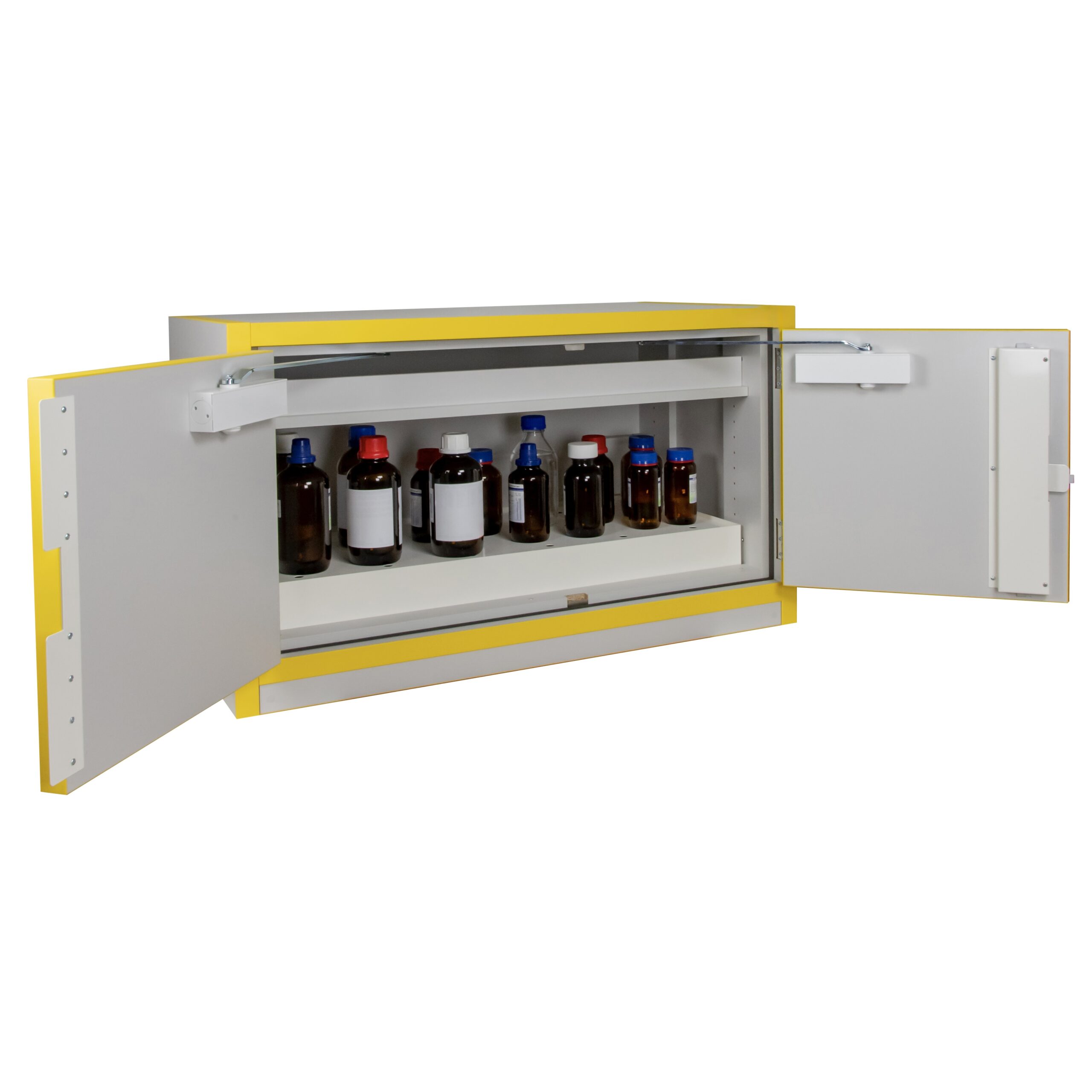

ITEM NO: F30-KEM2
EXT. MEASUREMENTS: H635 x W1115 x D550 mm.
INT. MEASUREMENTS: H366 x W1001 x D419 mm.
FITTINGS: One floor-trough
WEIGHT: 108 kg
MISC: Exhaust attatchment (Ø100 mm) situated in back of cabinet

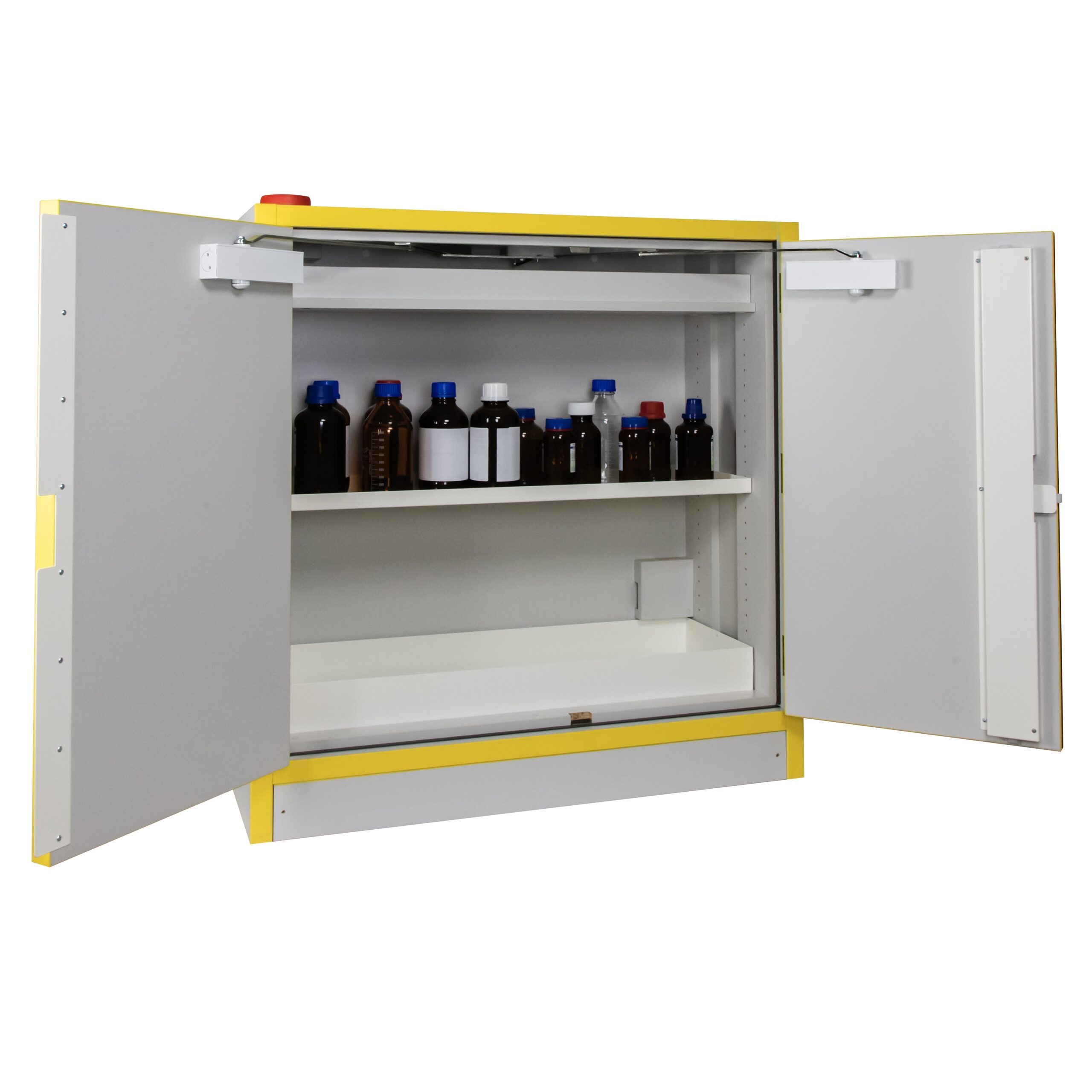

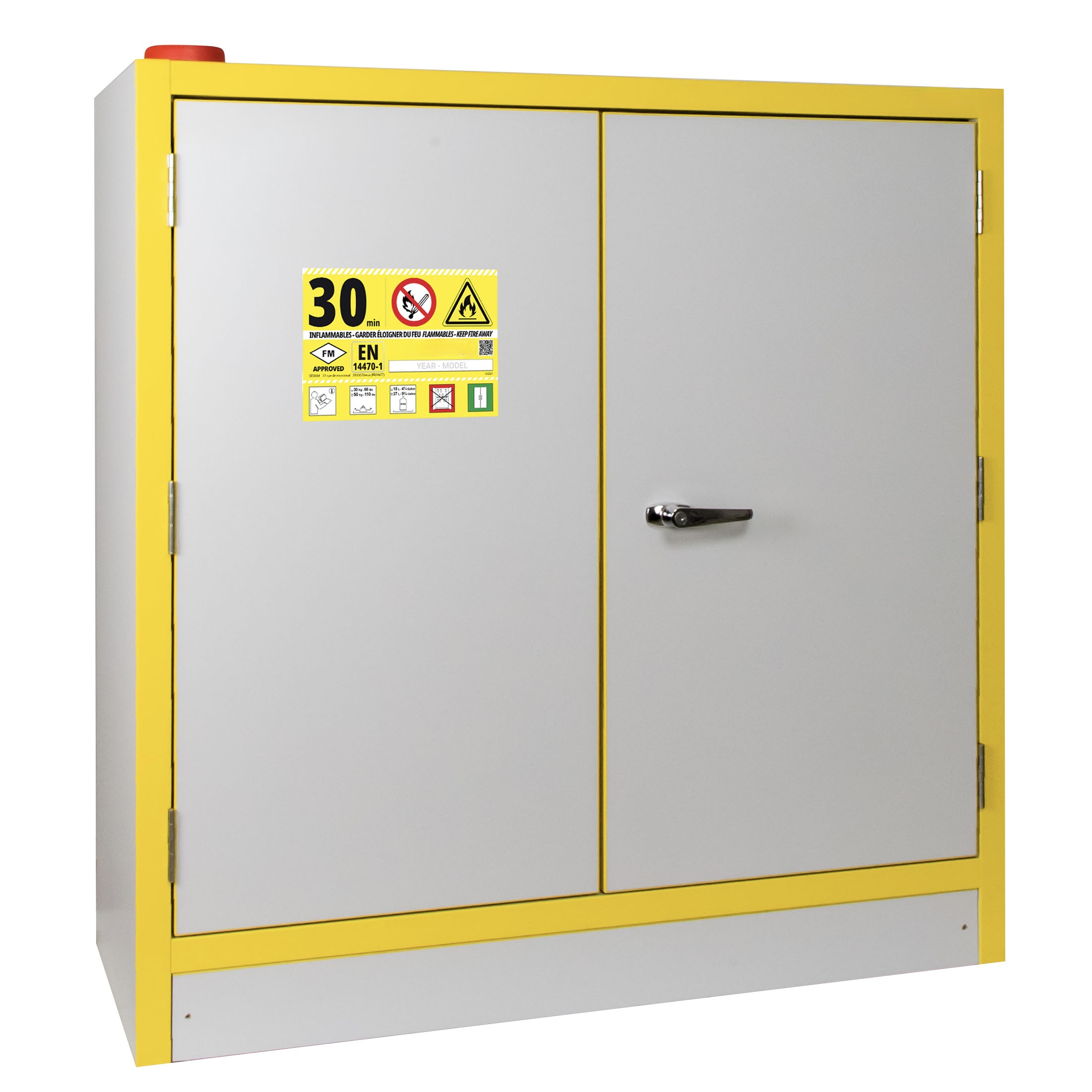

ITEM NO: F30-KEM3
EXT. MEASUREMENTS: H1198 x W1092 x D537 mm.
INT. MEASUREMENTS: H799 x W978 x D325 mm.
FITTINGS: One floor-trough and one shelf
WEIGHT: 170 kg
MISC: Exhaust attatchment (Ø100 mm) situated on top of cabinet

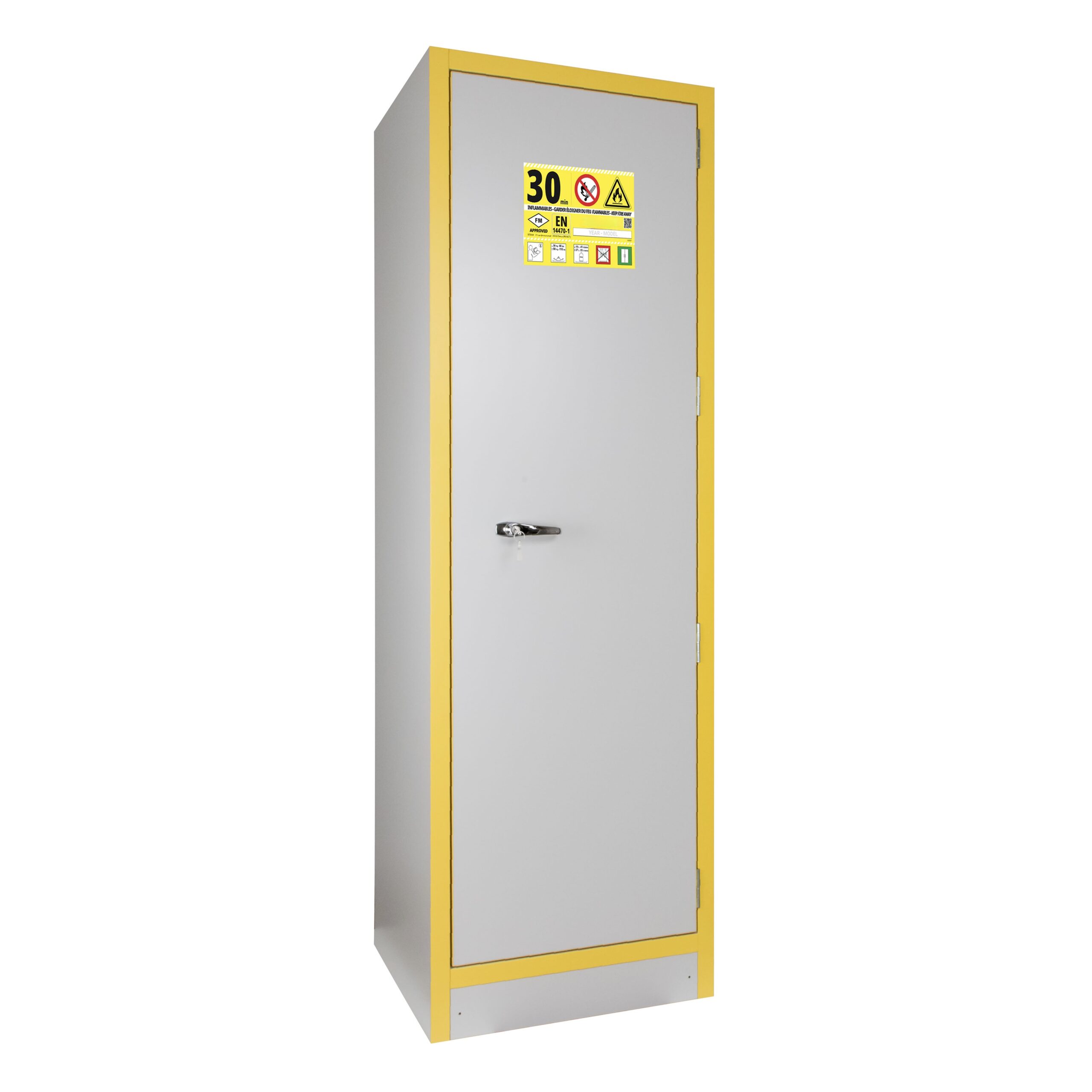

ITEM NO: F30-KEM4
EXT. MEASUREMENTS: H1980 x W605 x D550 mm.
INT. MEASUREMENTS: H1581 x W491 x D419 mm.
FITTINGS: One floor-trough and one shelf
WEIGHT: 117 kg
MISC: Exhaust attatchment (Ø100 mm) situated on top of cabinet

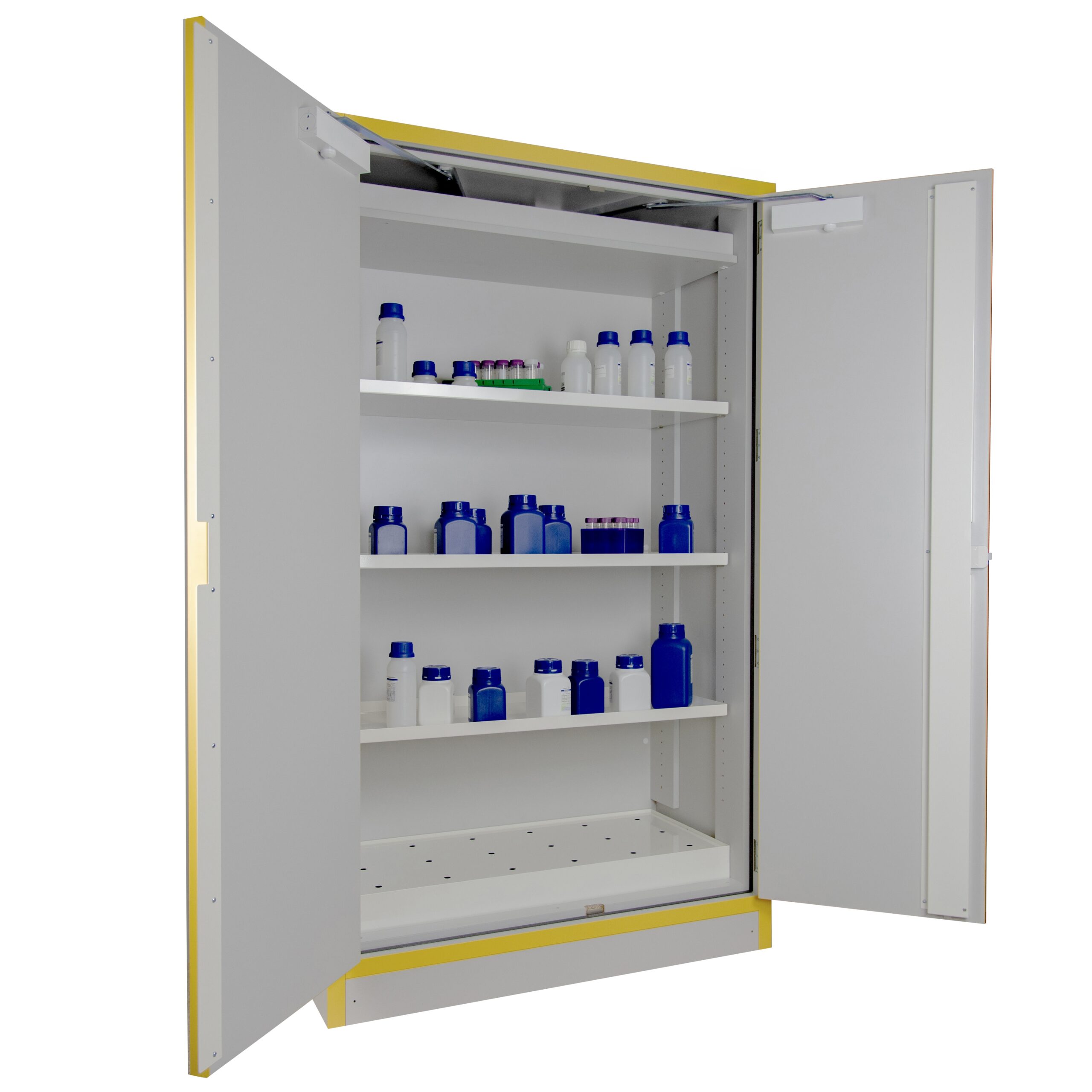

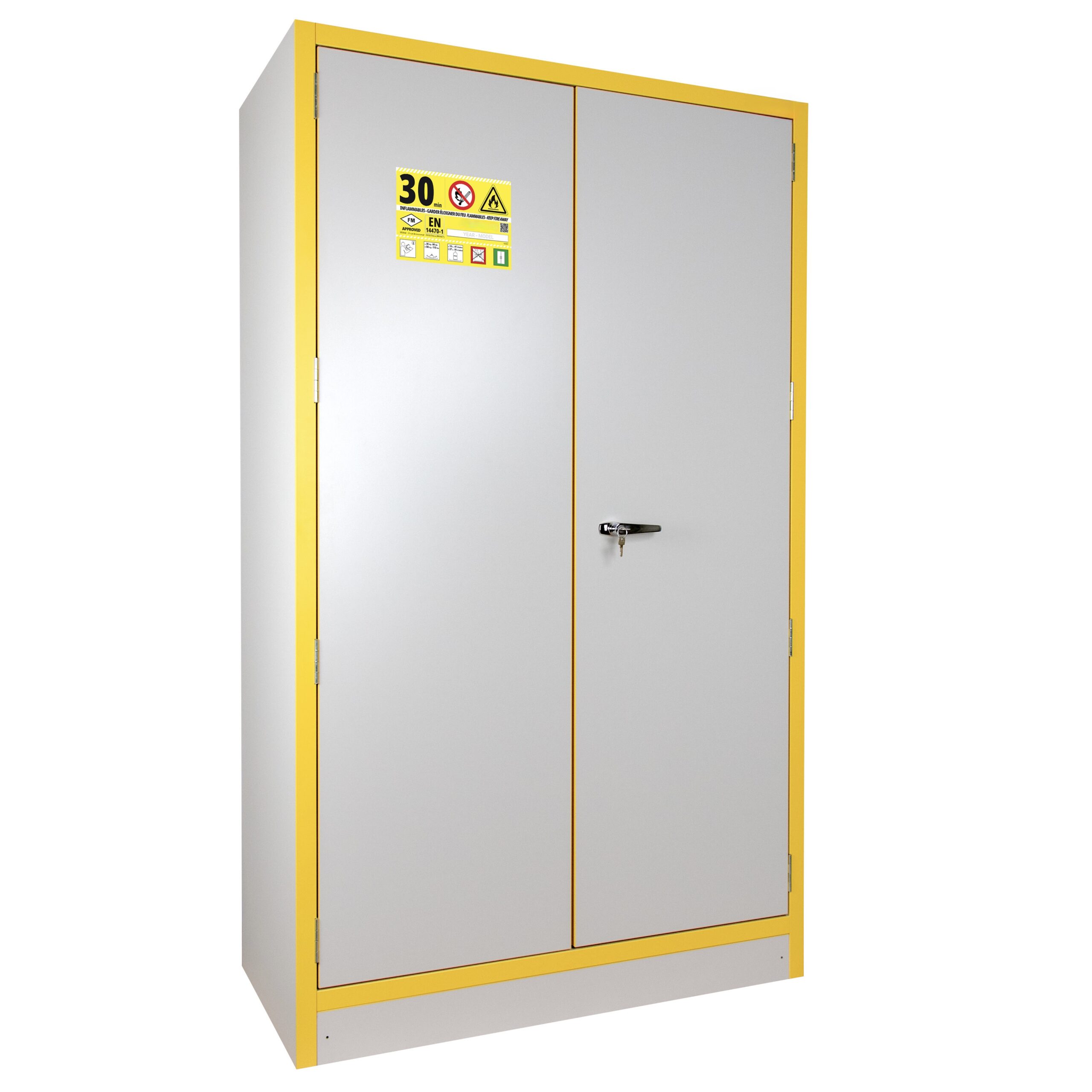

ITEM NO: F30-KEM5
EXT. MEASUREMENTS: H1980 x W1115 x D550 mm.
INT. MEASUREMENTS: H1581 x W1001 x D419 mm.
FITTINGS: One floor-trough and three shelves
WEIGHT: 210 kg
MISC: Exhaust attatchment (Ø100 mm) situated on top of cabinet
FITTINGS
ITEM NO: F30-KEM1H
Trough-shelf for F30KEM1
ITEM NO: F30-KEM1PB
Perforated base plate for collection trough for F30KEM1
ITEM NO: F30-KEM2H
Trough-shelf for F30KEM2
ITEM NO: F30-KEM2PB
Perforated base plate for collection trough for F30KEM2
ITEM NO: F30-KEM3H
Trough-shelf for F30KEM3
ITEM NO: F30-KEM3PB
Perforated base plate for collection trough for F30KEM3
ITEM NO: F30-KEM4H
Trough-shelf for F30KEM4
ITEM NO: F30-KEM4PB
Perforated base plate for collection trough for F30KEM4
ITEM NO: F30-KEM5H
Trough-shelf for F30KEM5
TEM NO: F30-KEM5PB
Perforated base plate for collection trough for F30KEM5
