EI30 Gas Cabinet
Description
Gas Cabinet – When Fire-class EI30 is required.
The cabinet is meant for storage of gases in public spaces (Schools, hospitals, resturants ect.). The cabinet has been fire tested by the technical research institute of Sweden according to the NT FIRE 017 method and has sucessfully managed 30 minutes. According to the Swedish Civil Contingency agencys statues (SÄFIS 1998:7) EI30-separation is required for storage of flammable gases in public spaces. This also applies to “A-buildings” when storing more than 60 but less than 250 litres of gas.
JiWa EI30 Separating Gas Cabinets are fitted with ventilation attatchments that ventilate directly through exterior wall without need for mechanical ventilation. Two exhaust spigots (ILÖ 80) are placed on the back of the cabinet, one on the top end and one on the bottom end.
See also our gas cabinets compliant with the european standard for laboratories – EN 14470-2
Trials done by the Technical Research Institute of Sweden:
– Fire tested according to NT Fire 017 – 30 minutes
– Quality according to SS83 90 30 edition 3
– Compliant with Möbelfaktas extra high demand on surface durability
ITEM NO: EI30 GAS1
EXT. MEASUREMENTS: H853 x W925 x D770 mm.
INT. MEASUREMENTS: H628 x W700 x D600 mm.
WEIGHT: 180 kg

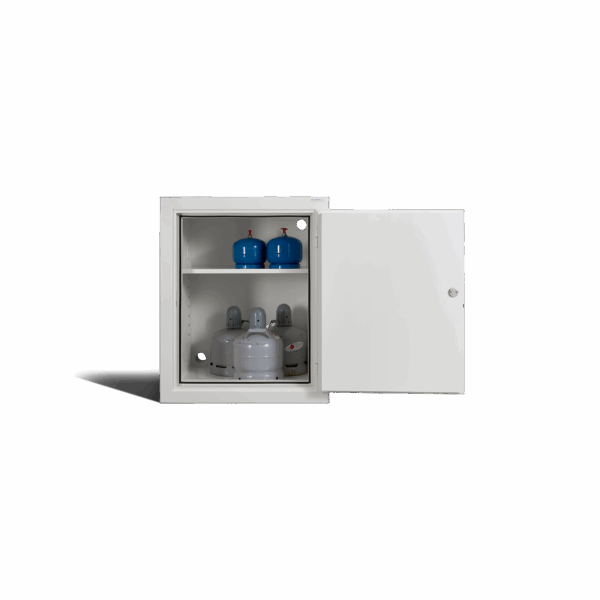

ITEM NO: EI30 GAS2
EXT. MEASUREMENTS: H1125 x W925 x D770 mm.
INT. MEASUREMENTS: H900 x W700 x D600 mm.
WEIGHT: 220 kg
ITEM NO: EI30 GAS3
EXT. MEASUREMENTS: H2003 x W925 x D600 mm.
INT. MEASUREMENTS: H1775 x W700 x D435 mm.
WEIGHT: 300 kg
ITEM NO: EI30 GAS4
EXT. MEASUREMENTS: H853 x W925 x D600 mm.
INT MEASUREMENTS: H628 x W700 x D435 mm.
WEIGHT: 150 kg
Fittings
ITEM NO: EI30L
Lock incl. two keys, ASSA pin lock 565, ASSA Cylinder 701
ITEM NO: EI30H12
Movable shelf for EI30GAS1 & 2
ITEM NO: EI30UH12
Extractable shelf for EI30GAS1 & 2
ITEM NO: EI30VAGN12
Cart incl. ramp for EI30GAS1 & 2
ITEM NO: EI30H3
Movable shelf for EI30GAS3 & 4
ITEM NO: EI30UH3
Extractable shelf for EI30GAS3 & 4
