JiWas F60 Separating Chemical Cabinets are fire tested for 60 minutes in accordance with EN-standard 14470-1. The cabinets are fitted with self-closing dorrs that can be set in an open position but will close automatically when a temperature rise of 50°C occurs in the room. Doors are locked separately.
Exhaust attatchment (Ø100 mm).
The cabinets are fitted with movable shelves and base-trough.
Trials
– Fire tested for 60 minutes in accordance with EN-standard 14470-1

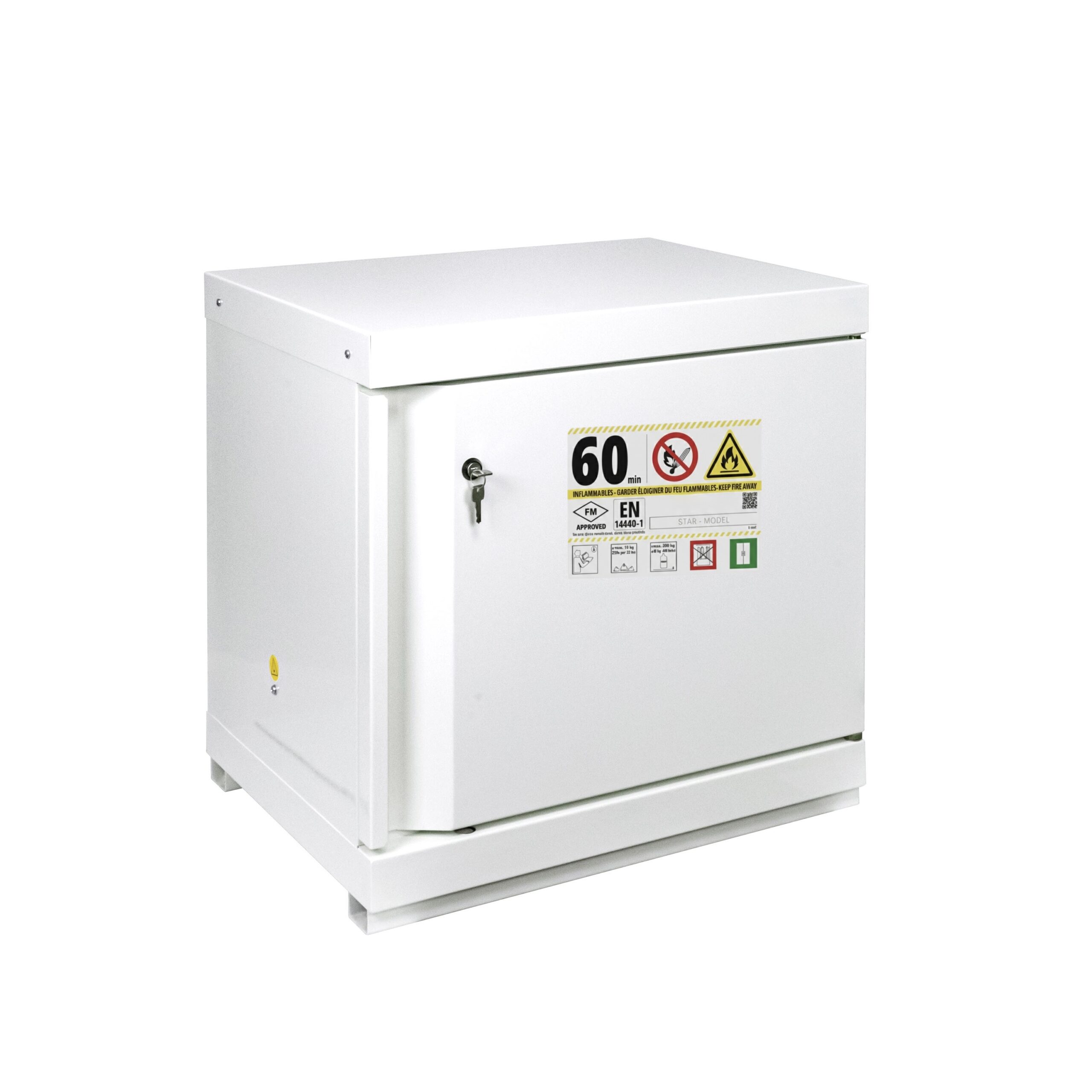

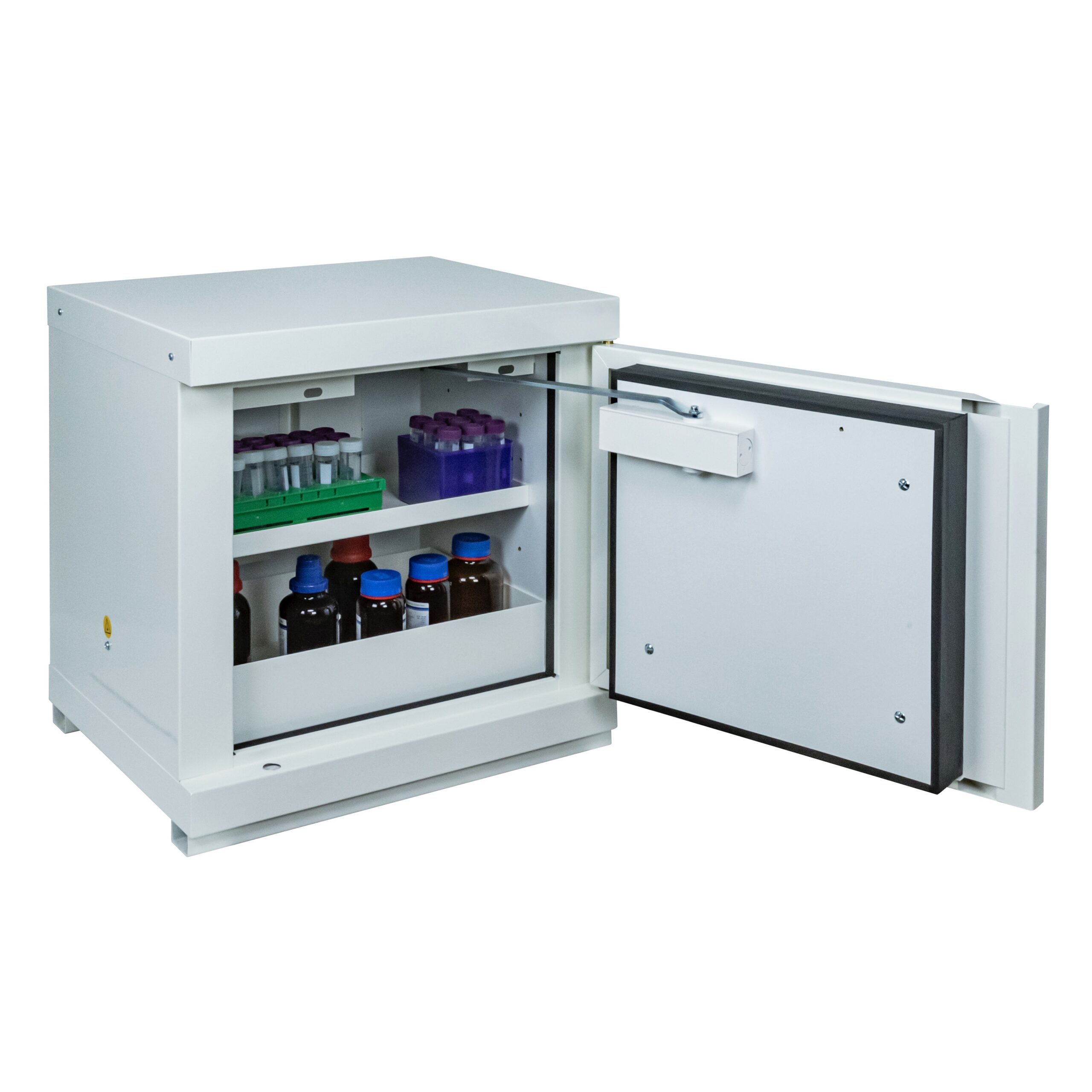

ITEM NO: F60-KEM1
EXT. MEASUREMENTS: H670 x W635 x D615 mm.
INT. MEASUREMENTS: H530 x W490 x D410 mm.
FITTINGS: One base-trough and one shelf
WEIGHT: 127 kg
MISC: Ventilation attatchment (Ø100 mm) in back of cabinet

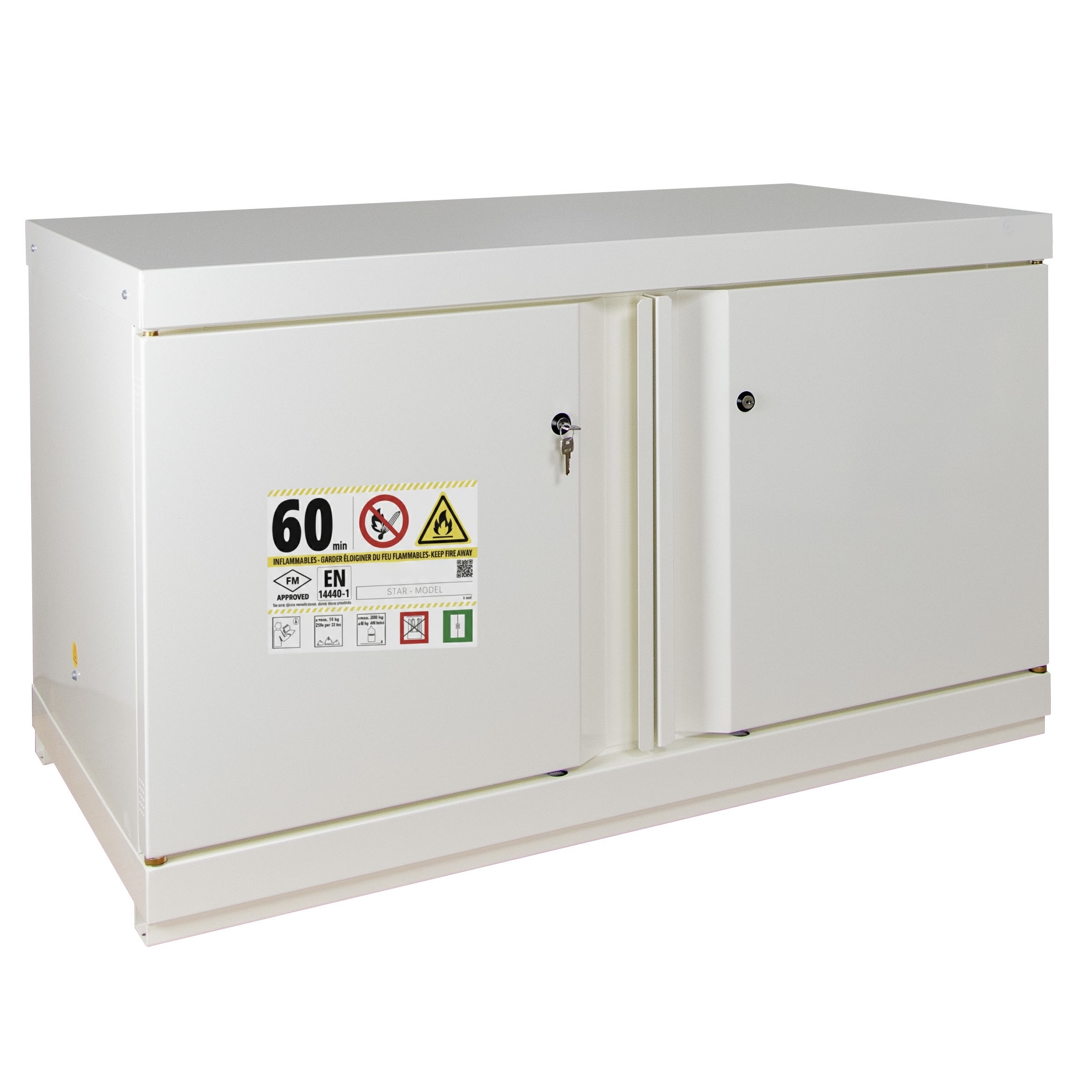

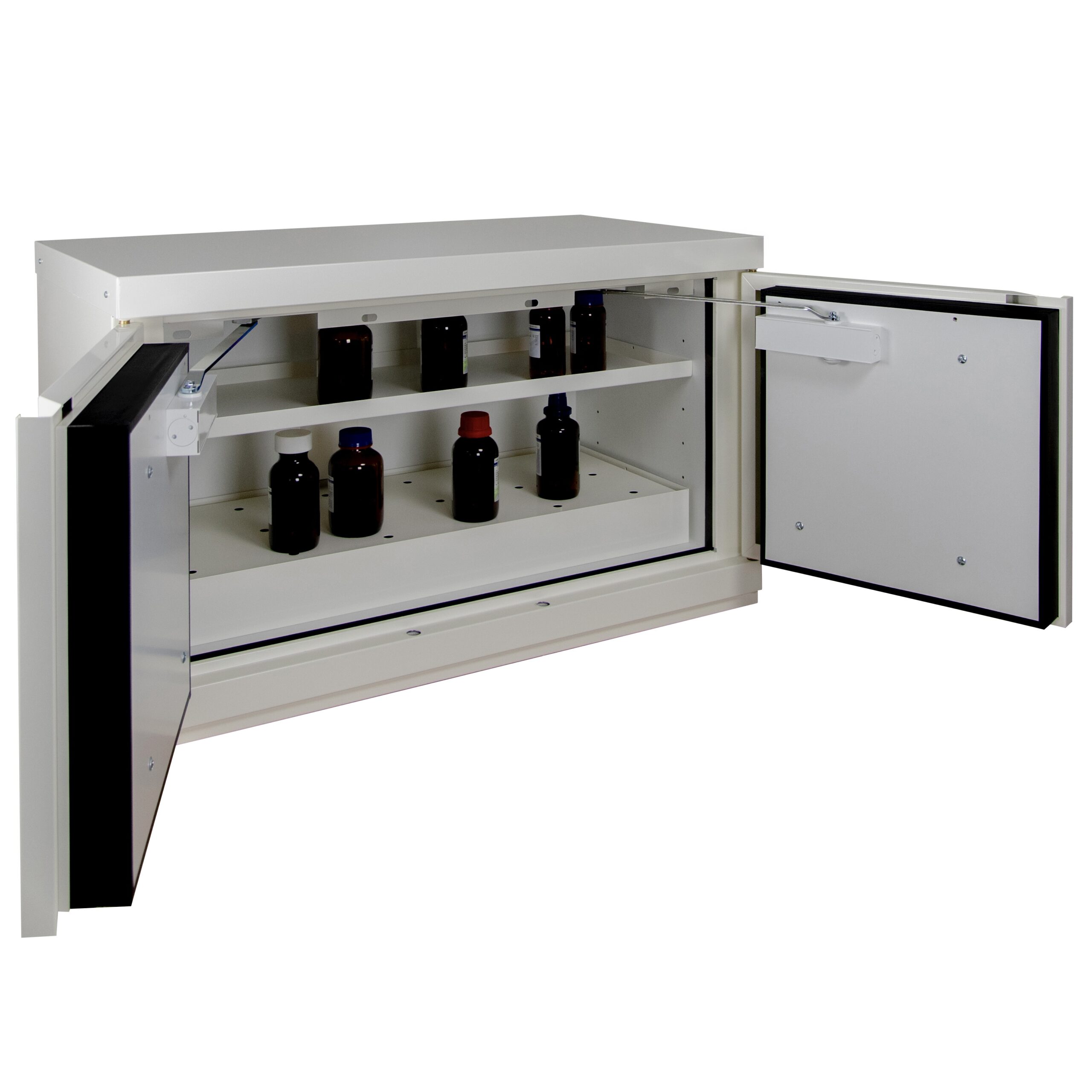

ITEM NO: F60-KEM2
EXT. MEASUREMENTS: H670 x W1135 x D615 mm.
INT. MEASUREMENTS: H530 x W1000 x D410 mm.
FITTINGS: One base-trough and one shelf
WEIGHT: 213 kg
MISC: Ventilation attatchment (Ø100 mm) in back of cabinet

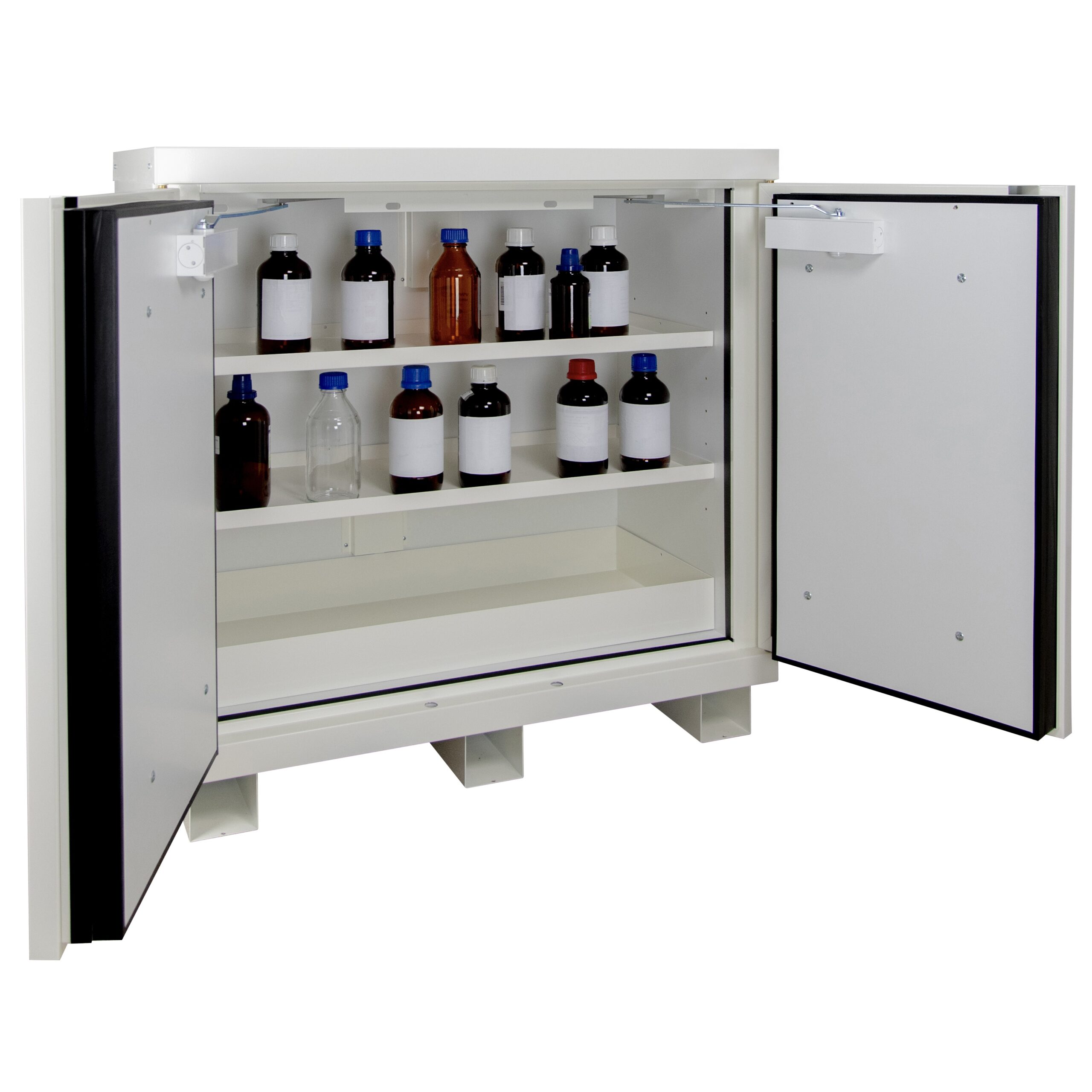

ITEM NO: F60-KEM3
EXT. MEASUREMENTS: H1080 x W1135 x D615 mm.
INT. MEASUREMENTS: H820 x W1000 x D410 mm.
FITTINGS: One base-trough and two shelves
WEIGHT: 297 kg
MISC: Ventilation attatchment (Ø100 mm) in back of cabinet

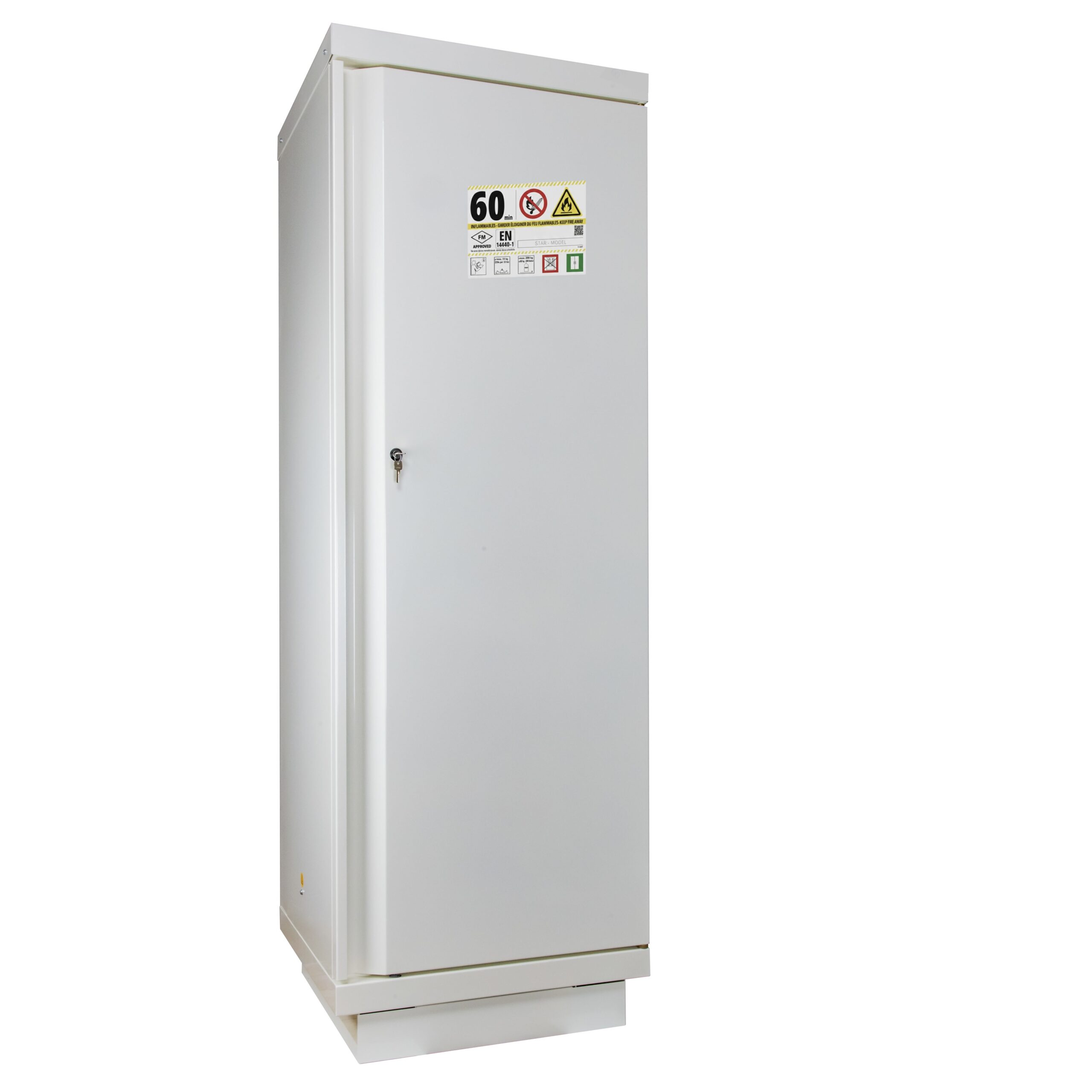

ITEM NO: F60-KEM4
EXT. MEASUREMENTS: H1880 x W635 x D615 mm.
INT. MEASUREMENTS: H1620 x W490 x D410 mm.
FITTINGS: One base-tough and three shelves
WEIGHT: 287 kg
MISC: Ventilation attatchment (Ø100 mm) on top of cabinet

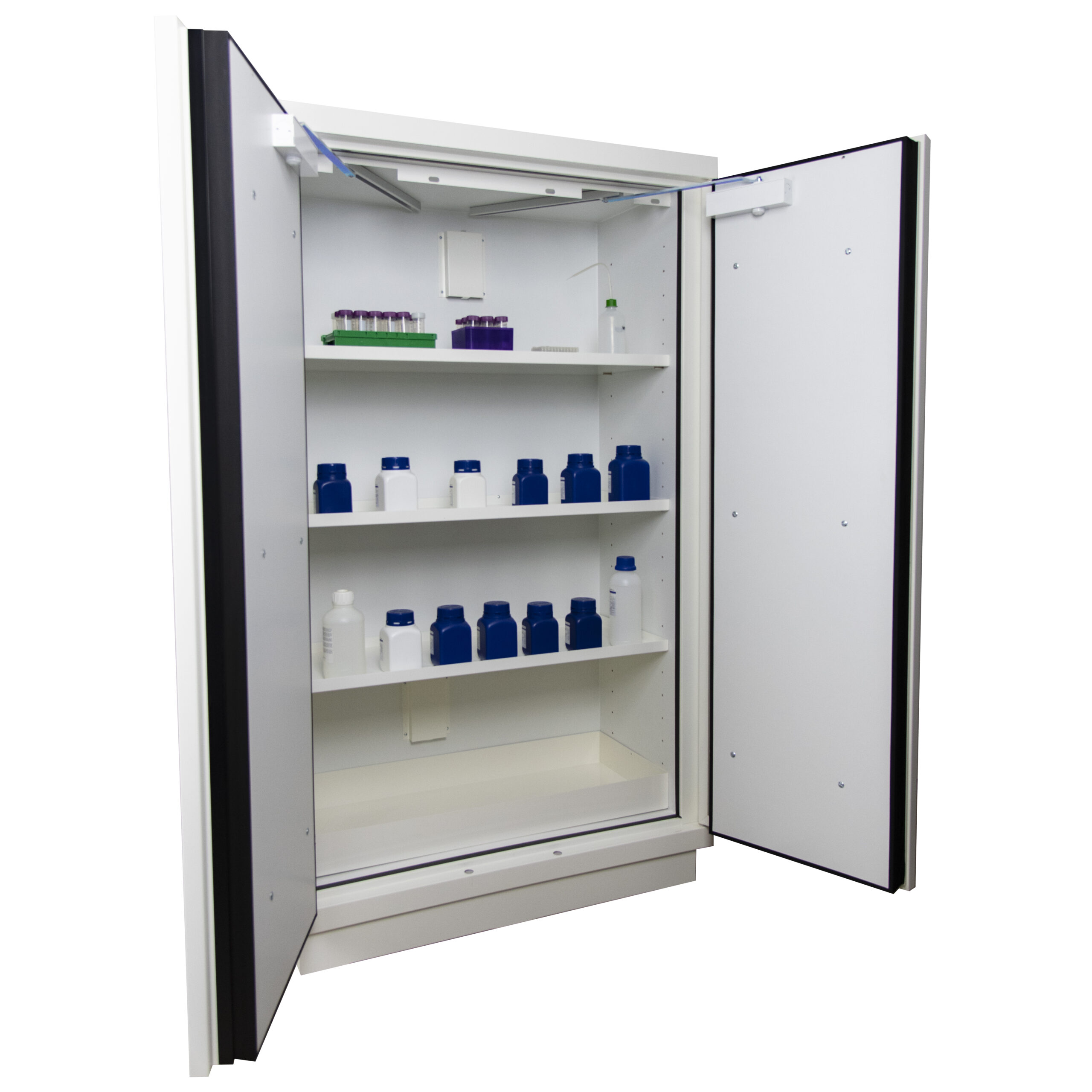

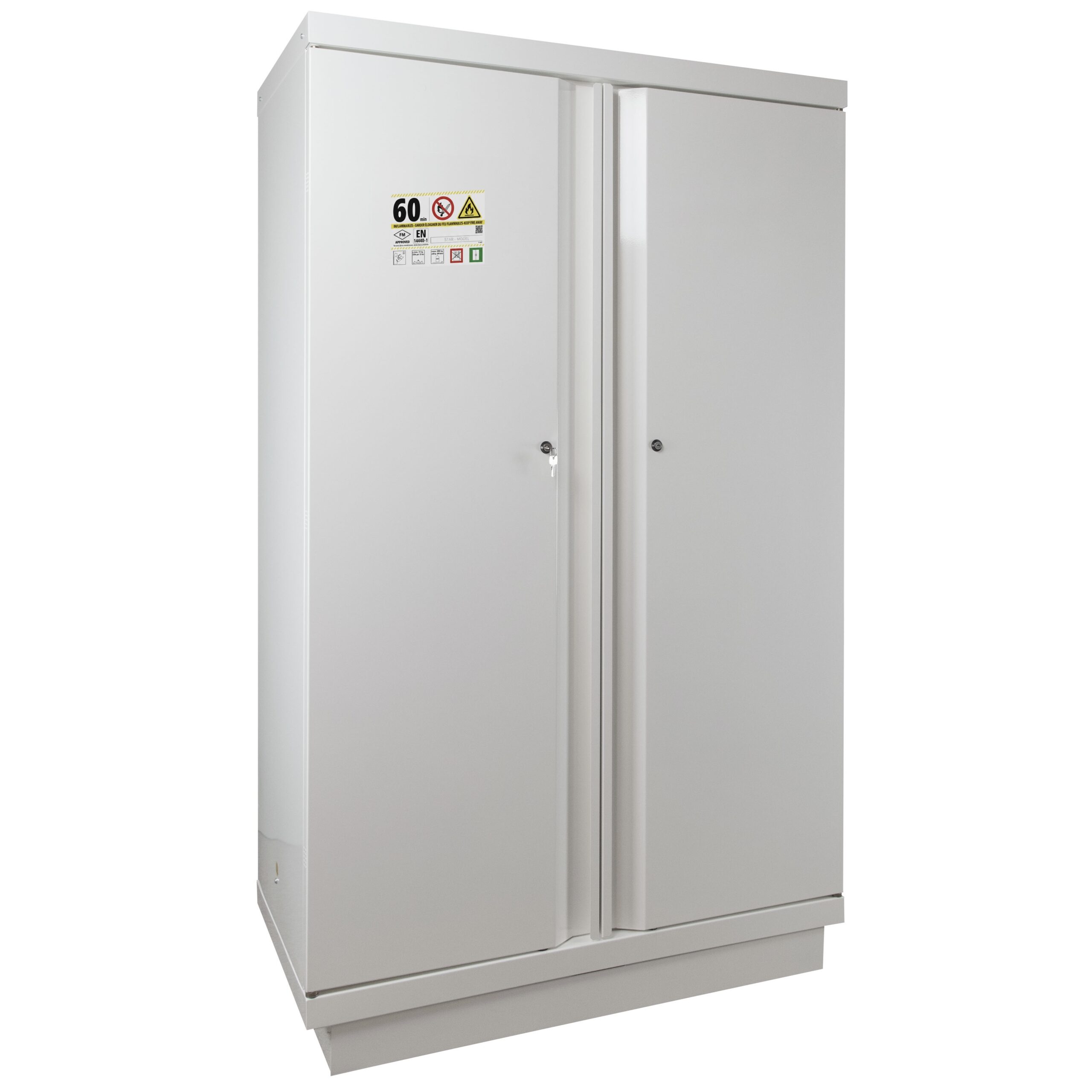

ITEM NO: F60-KEM5
EXT MEASUREMENTS: H1880 x W1135 x D615 mm.
INT. MEASUREMENTS.: H1620 x W1000 x D410 mm.
FITTINGS: One base-trough and three shelves
WEIGHT: 453 kg
MISC: Ventilation attatchment (Ø100 mm) on top of cabinet
FITTINGS
ITEM NO: F60-KEM1H
Trough-shelf for F60KEM1
ITEM NO: F60-KEM1PB
Perforated baseplate for collection trough for F60KEM1
ITEM NO: F60-KEM2H
Trough-shelf for F60KEM2
ITEM NO: F60-KEM2PB
Perforated baseplate for collection trough for F60KEM2
ITEM NO: F60-KEM3H
Trough-shelf for F60KEM3
ITEM NO: F60-KEM3PB
Perforated baseplate for collection trough for F60KEM3
ITEM NO: F60-KEM4H
Trough-shelf for F60KEM4
ITEM NO: F60-KEM4PB
Perforated baseplate for collection trough for F60KEM4
ITEM NO: F60-KEM5H
Trough-shelf for F60KEM5
ITEM NO: F60-KEM5PB
Perforated baseplate for collection trough for F60KEM5
