The JiWaCharge e-bike battery cabinet is a robust charging cabinet designed for safe outdoor storage and charging of e-bike batteries. Manufactured in Sweden, the cabinet is built from Magnelis steel with C5-rated corrosion protection, ensuring a long service life even in demanding Nordic environments.
The compartments are spacious and well-ventilated. Each compartment is equipped with an IP-rated grounded outlet and an individual code lock (IP65) for convenient and secure charging. The cabinet is rated for 16A and fitted with a 16A fuse, allowing all charging points to operate simultaneously with stable performance. Available with four or eight compartments and can be customized to meet your needs, for example with RFID locking.
A practical choice for anyone looking to offer outdoor storage and charging of e-bike batteries, reduce indoor fire risks and strengthen systematic fire safety management (SBA).
The battery cabinets can also be ordered without electrical installation, with options for a concrete foundation or a base plate for anchoring to a concrete block. Sheet thickness: Frame/roof: 1.25 mm. Doors/floor section: 2 mm.
Testing
– CE
– Tested by RISE in accordance with IEC/EN 60335-1:2023+A11:2023 for safe charging and use in outdoor environments where untrained individuals handle the equipment.This standard applies to electrical products intended for public use, ensuring a high level of safety.

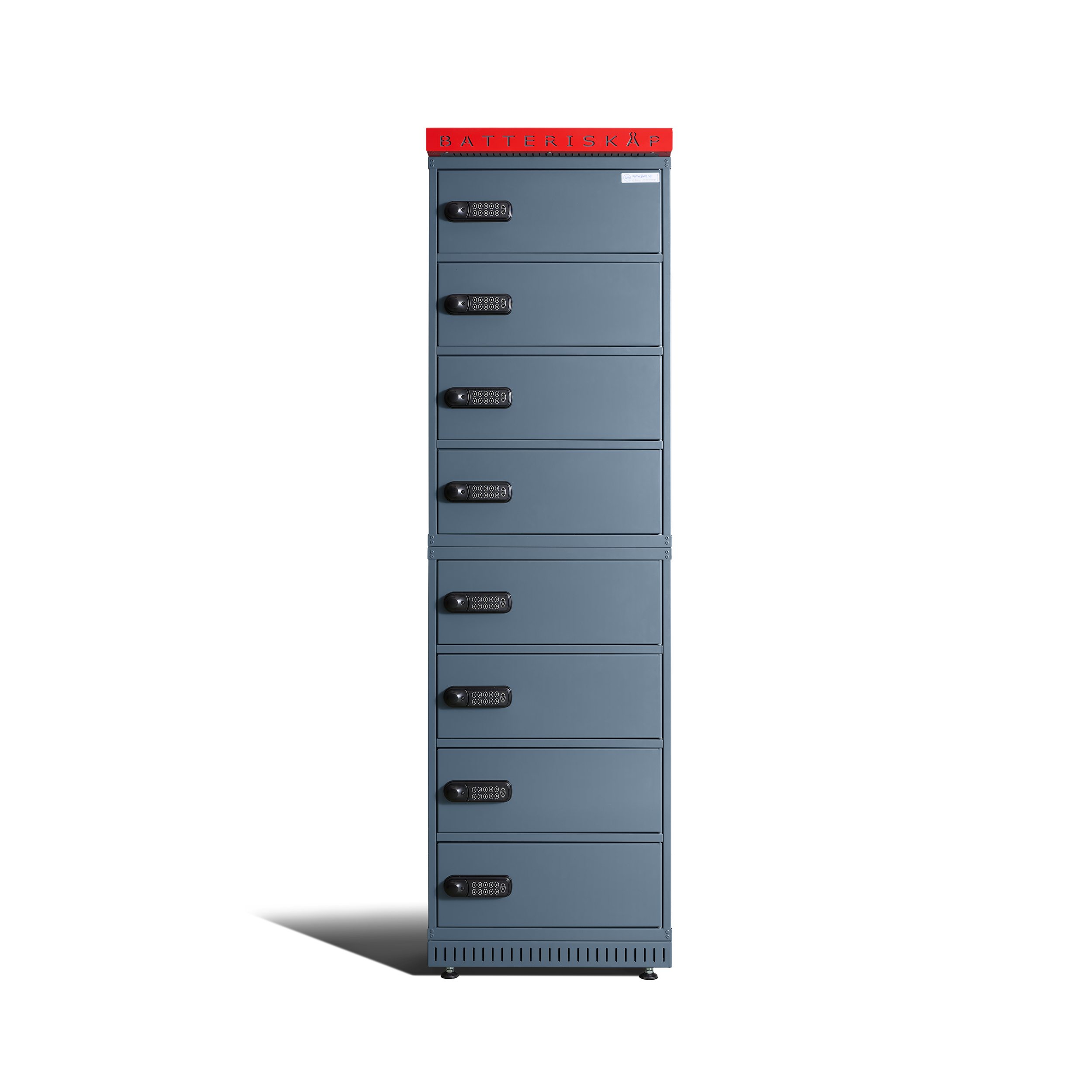

JiWaCharge 8
ITEM NO: ENGCBAT8
EXT. DIM: H1835 x W514 x D455 mm.
COMP. DIM: H180 x W475 x D380 mm
NUMBER OF COMPARTMENTS: 8
JiWaCharge 4G
ITEM NO: ENGCBAT4G
EXT. DIM: H1010 x W514 x D455 mm.
COMP. DIM: H180 x W475 x D380 mm
NUMBER OF COMPARTMENTS: 4

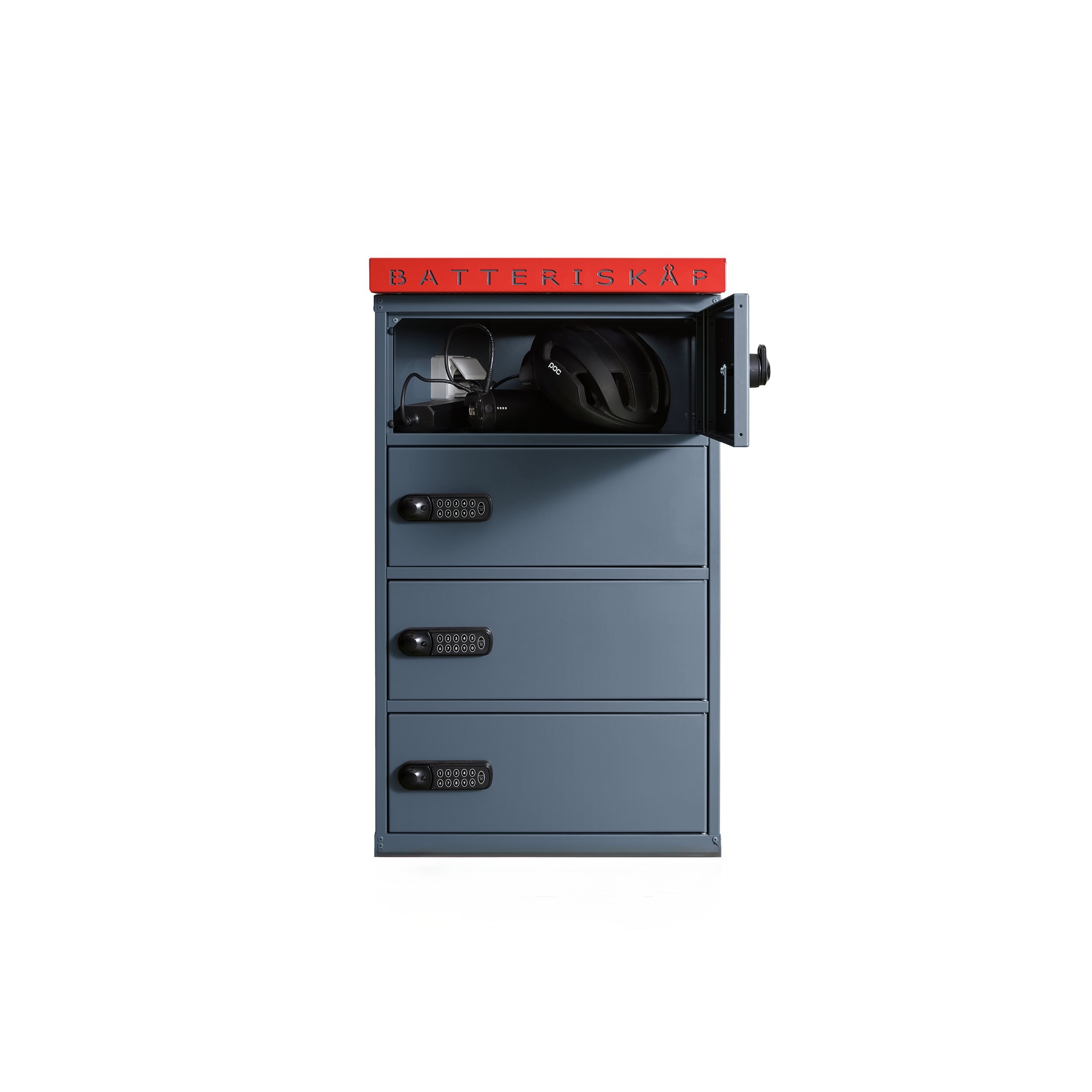

JiWaCharge 4 (wall-mounted)
ITEM NO: ENGCBAT4
EXT. DIM: H913 x W514 x D455 mm.
COMP. DIM: H180 x W475 x D380 mm
NUMBER OF COMPARTMENTS: 4
The cabinet is supplied without a floor base.
Equipment
ITEM NO: CBATV
Heater for JiWaCharge Cabinet
ITEM NO: CBATP
Pallet for CBAT4, height 919mm

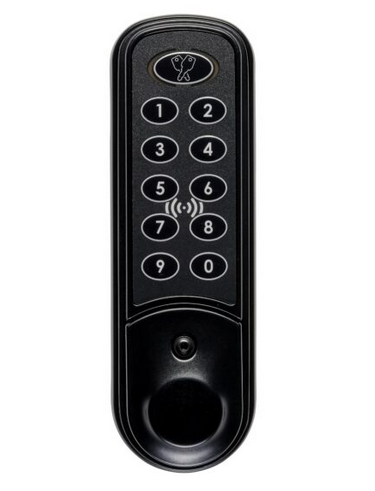

ITEM NO: CBAT-RFID
4 electronic locks with RFID

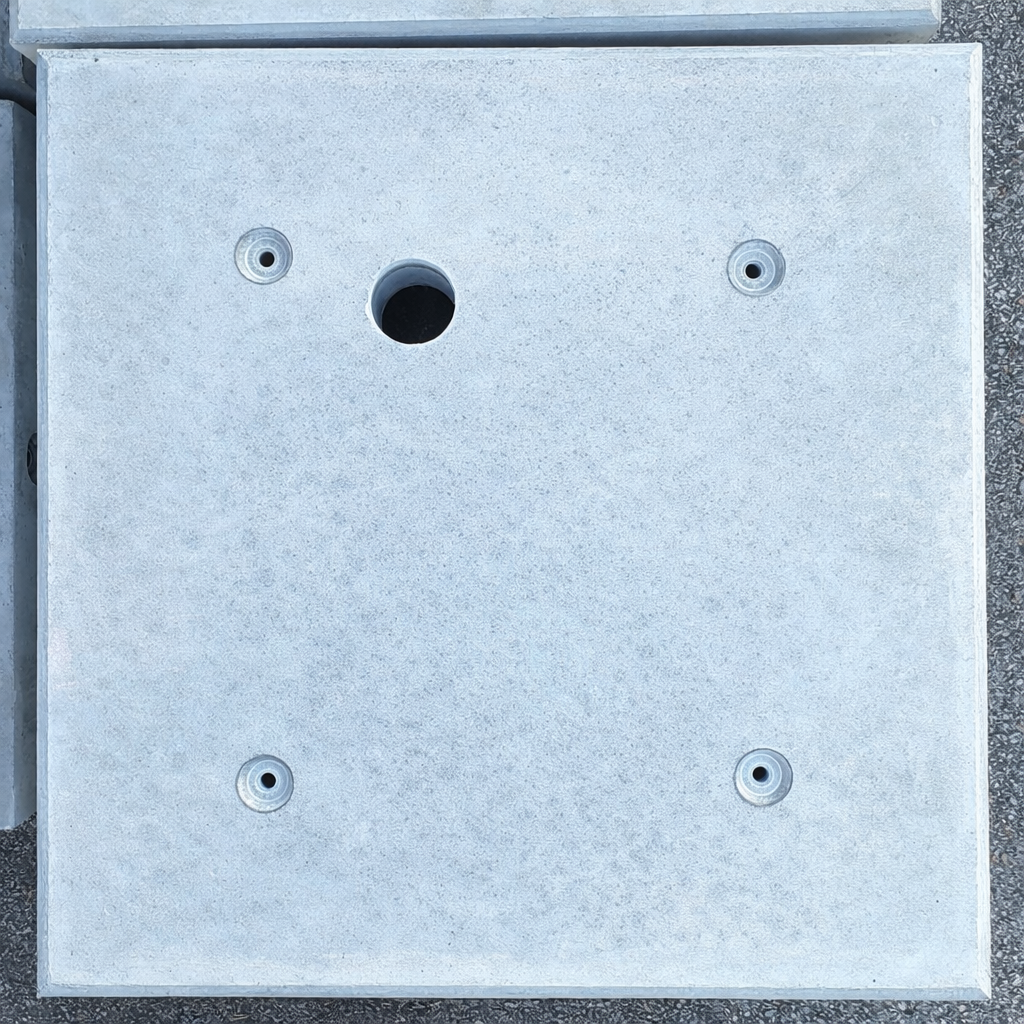

ITEM NO: CBATBP
Base plate for placement on a concrete block
Download product datasheet – JiWaCharge CBAT
